stm32f4xx_dbgmcu.h File Reference

This file contains all the functions prototypes for the DBGMCU firmware library. More...

#include "stm32f4xx.h"

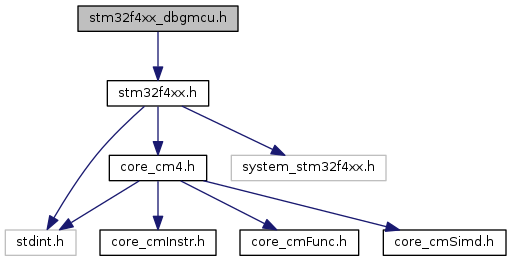

Include dependency graph for stm32f4xx_dbgmcu.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	DBGMCU_CAN1_STOP   ((uint32_t)0x02000000)
#define	DBGMCU_CAN2_STOP   ((uint32_t)0x04000000)
#define	DBGMCU_I2C1_SMBUS_TIMEOUT   ((uint32_t)0x00200000)
#define	DBGMCU_I2C2_SMBUS_TIMEOUT   ((uint32_t)0x00400000)
#define	DBGMCU_I2C3_SMBUS_TIMEOUT   ((uint32_t)0x00800000)
#define	DBGMCU_IWDG_STOP   ((uint32_t)0x00001000)
#define	DBGMCU_RTC_STOP   ((uint32_t)0x00000400)
#define	DBGMCU_SLEEP   ((uint32_t)0x00000001)
#define	DBGMCU_STANDBY   ((uint32_t)0x00000004)
#define	DBGMCU_STOP   ((uint32_t)0x00000002)
#define	DBGMCU_TIM10_STOP   ((uint32_t)0x00020000)
#define	DBGMCU_TIM11_STOP   ((uint32_t)0x00040000)
#define	DBGMCU_TIM12_STOP   ((uint32_t)0x00000040)
#define	DBGMCU_TIM13_STOP   ((uint32_t)0x00000080)
#define	DBGMCU_TIM14_STOP   ((uint32_t)0x00000100)
#define	DBGMCU_TIM1_STOP   ((uint32_t)0x00000001)
#define	DBGMCU_TIM2_STOP   ((uint32_t)0x00000001)
#define	DBGMCU_TIM3_STOP   ((uint32_t)0x00000002)
#define	DBGMCU_TIM4_STOP   ((uint32_t)0x00000004)
#define	DBGMCU_TIM5_STOP   ((uint32_t)0x00000008)
#define	DBGMCU_TIM6_STOP   ((uint32_t)0x00000010)
#define	DBGMCU_TIM7_STOP   ((uint32_t)0x00000020)
#define	DBGMCU_TIM8_STOP   ((uint32_t)0x00000002)
#define	DBGMCU_TIM9_STOP   ((uint32_t)0x00010000)
#define	DBGMCU_WWDG_STOP   ((uint32_t)0x00000800)
#define	IS_DBGMCU_APB1PERIPH(PERIPH)   ((((PERIPH) & 0xF91FE200) == 0x00) && ((PERIPH) != 0x00))
#define	IS_DBGMCU_APB2PERIPH(PERIPH)   ((((PERIPH) & 0xFFF8FFFC) == 0x00) && ((PERIPH) != 0x00))
#define	IS_DBGMCU_PERIPH(PERIPH)   ((((PERIPH) & 0xFFFFFFF8) == 0x00) && ((PERIPH) != 0x00))

Functions
void	DBGMCU_APB1PeriphConfig (uint32_t DBGMCU_Periph, FunctionalState NewState)
	Configures APB1 peripheral behavior when the MCU is in Debug mode. More...
void	DBGMCU_APB2PeriphConfig (uint32_t DBGMCU_Periph, FunctionalState NewState)
	Configures APB2 peripheral behavior when the MCU is in Debug mode. More...
void	DBGMCU_Config (uint32_t DBGMCU_Periph, FunctionalState NewState)
	Configures the specified peripheral and low power mode behavior when the MCU under Debug mode. More...
uint32_t	DBGMCU_GetDEVID (void)
	Returns the device identifier. More...
uint32_t	DBGMCU_GetREVID (void)
	Returns the device revision identifier. More...

Detailed Description

This file contains all the functions prototypes for the DBGMCU firmware library.

Author

MCD Application Team

Version

V1.1.0

Date

11-January-2013

Attention

© COPYRIGHT 2013 STMicroelectronics

Licensed under MCD-ST Liberty SW License Agreement V2, (the "License"); You may not use this file except in compliance with the License. You may obtain a copy of the License at:

   http://www.st.com/software_license_agreement_liberty_v2

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Definition in file stm32f4xx_dbgmcu.h.
