This file contains all the functions prototypes for the SDIO firmware library. More...
#include "stm32f10x.h"
Include dependency graph for stm32f10x_sdio.h:

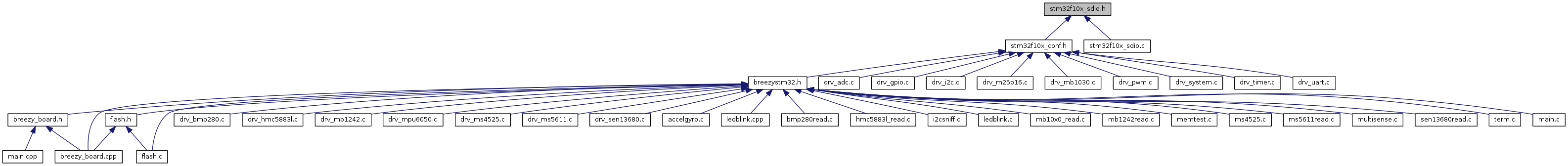

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | SDIO_CmdInitTypeDef |
| struct | SDIO_DataInitTypeDef |
| struct | SDIO_InitTypeDef |
Macros | |
| #define | IS_SDIO_BLOCK_SIZE(SIZE) |
| #define | IS_SDIO_BUS_WIDE(WIDE) |
| #define | IS_SDIO_CLEAR_FLAG(FLAG) ((((FLAG) & (uint32_t)0xFF3FF800) == 0x00) && ((FLAG) != (uint32_t)0x00)) |
| #define | IS_SDIO_CLEAR_IT(IT) ((((IT) & (uint32_t)0xFF3FF800) == 0x00) && ((IT) != (uint32_t)0x00)) |
| #define | IS_SDIO_CLOCK_BYPASS(BYPASS) |
| #define | IS_SDIO_CLOCK_EDGE(EDGE) |
| #define | IS_SDIO_CLOCK_POWER_SAVE(SAVE) |
| #define | IS_SDIO_CMD_INDEX(INDEX) ((INDEX) < 0x40) |
| #define | IS_SDIO_CPSM(CPSM) (((CPSM) == SDIO_CPSM_Enable) || ((CPSM) == SDIO_CPSM_Disable)) |
| #define | IS_SDIO_DATA_LENGTH(LENGTH) ((LENGTH) <= 0x01FFFFFF) |
| #define | IS_SDIO_DPSM(DPSM) (((DPSM) == SDIO_DPSM_Enable) || ((DPSM) == SDIO_DPSM_Disable)) |
| #define | IS_SDIO_FLAG(FLAG) |
| #define | IS_SDIO_GET_IT(IT) |
| #define | IS_SDIO_HARDWARE_FLOW_CONTROL(CONTROL) |
| #define | IS_SDIO_IT(IT) ((((IT) & (uint32_t)0xFF000000) == 0x00) && ((IT) != (uint32_t)0x00)) |
| #define | IS_SDIO_POWER_STATE(STATE) (((STATE) == SDIO_PowerState_OFF) || ((STATE) == SDIO_PowerState_ON)) |
| #define | IS_SDIO_READWAIT_MODE(MODE) |
| #define | IS_SDIO_RESP(RESP) |
| #define | IS_SDIO_RESPONSE(RESPONSE) |
| #define | IS_SDIO_TRANSFER_DIR(DIR) |
| #define | IS_SDIO_TRANSFER_MODE(MODE) |
| #define | IS_SDIO_WAIT(WAIT) |
| #define | SDIO_BusWide_1b ((uint32_t)0x00000000) |
| #define | SDIO_BusWide_4b ((uint32_t)0x00000800) |
| #define | SDIO_BusWide_8b ((uint32_t)0x00001000) |
| #define | SDIO_ClockBypass_Disable ((uint32_t)0x00000000) |
| #define | SDIO_ClockBypass_Enable ((uint32_t)0x00000400) |
| #define | SDIO_ClockEdge_Falling ((uint32_t)0x00002000) |
| #define | SDIO_ClockEdge_Rising ((uint32_t)0x00000000) |
| #define | SDIO_ClockPowerSave_Disable ((uint32_t)0x00000000) |
| #define | SDIO_ClockPowerSave_Enable ((uint32_t)0x00000200) |
| #define | SDIO_CPSM_Disable ((uint32_t)0x00000000) |
| #define | SDIO_CPSM_Enable ((uint32_t)0x00000400) |
| #define | SDIO_DataBlockSize_1024b ((uint32_t)0x000000A0) |
| #define | SDIO_DataBlockSize_128b ((uint32_t)0x00000070) |
| #define | SDIO_DataBlockSize_16384b ((uint32_t)0x000000E0) |
| #define | SDIO_DataBlockSize_16b ((uint32_t)0x00000040) |
| #define | SDIO_DataBlockSize_1b ((uint32_t)0x00000000) |
| #define | SDIO_DataBlockSize_2048b ((uint32_t)0x000000B0) |
| #define | SDIO_DataBlockSize_256b ((uint32_t)0x00000080) |
| #define | SDIO_DataBlockSize_2b ((uint32_t)0x00000010) |
| #define | SDIO_DataBlockSize_32b ((uint32_t)0x00000050) |
| #define | SDIO_DataBlockSize_4096b ((uint32_t)0x000000C0) |
| #define | SDIO_DataBlockSize_4b ((uint32_t)0x00000020) |
| #define | SDIO_DataBlockSize_512b ((uint32_t)0x00000090) |
| #define | SDIO_DataBlockSize_64b ((uint32_t)0x00000060) |
| #define | SDIO_DataBlockSize_8192b ((uint32_t)0x000000D0) |
| #define | SDIO_DataBlockSize_8b ((uint32_t)0x00000030) |
| #define | SDIO_DPSM_Disable ((uint32_t)0x00000000) |
| #define | SDIO_DPSM_Enable ((uint32_t)0x00000001) |
| #define | SDIO_FLAG_CCRCFAIL ((uint32_t)0x00000001) |
| #define | SDIO_FLAG_CEATAEND ((uint32_t)0x00800000) |
| #define | SDIO_FLAG_CMDACT ((uint32_t)0x00000800) |
| #define | SDIO_FLAG_CMDREND ((uint32_t)0x00000040) |
| #define | SDIO_FLAG_CMDSENT ((uint32_t)0x00000080) |
| #define | SDIO_FLAG_CTIMEOUT ((uint32_t)0x00000004) |
| #define | SDIO_FLAG_DATAEND ((uint32_t)0x00000100) |
| #define | SDIO_FLAG_DBCKEND ((uint32_t)0x00000400) |
| #define | SDIO_FLAG_DCRCFAIL ((uint32_t)0x00000002) |
| #define | SDIO_FLAG_DTIMEOUT ((uint32_t)0x00000008) |
| #define | SDIO_FLAG_RXACT ((uint32_t)0x00002000) |
| #define | SDIO_FLAG_RXDAVL ((uint32_t)0x00200000) |
| #define | SDIO_FLAG_RXFIFOE ((uint32_t)0x00080000) |
| #define | SDIO_FLAG_RXFIFOF ((uint32_t)0x00020000) |
| #define | SDIO_FLAG_RXFIFOHF ((uint32_t)0x00008000) |
| #define | SDIO_FLAG_RXOVERR ((uint32_t)0x00000020) |
| #define | SDIO_FLAG_SDIOIT ((uint32_t)0x00400000) |
| #define | SDIO_FLAG_STBITERR ((uint32_t)0x00000200) |
| #define | SDIO_FLAG_TXACT ((uint32_t)0x00001000) |
| #define | SDIO_FLAG_TXDAVL ((uint32_t)0x00100000) |
| #define | SDIO_FLAG_TXFIFOE ((uint32_t)0x00040000) |
| #define | SDIO_FLAG_TXFIFOF ((uint32_t)0x00010000) |
| #define | SDIO_FLAG_TXFIFOHE ((uint32_t)0x00004000) |
| #define | SDIO_FLAG_TXUNDERR ((uint32_t)0x00000010) |
| #define | SDIO_HardwareFlowControl_Disable ((uint32_t)0x00000000) |
| #define | SDIO_HardwareFlowControl_Enable ((uint32_t)0x00004000) |
| #define | SDIO_IT_CCRCFAIL ((uint32_t)0x00000001) |
| #define | SDIO_IT_CEATAEND ((uint32_t)0x00800000) |
| #define | SDIO_IT_CMDACT ((uint32_t)0x00000800) |
| #define | SDIO_IT_CMDREND ((uint32_t)0x00000040) |
| #define | SDIO_IT_CMDSENT ((uint32_t)0x00000080) |
| #define | SDIO_IT_CTIMEOUT ((uint32_t)0x00000004) |
| #define | SDIO_IT_DATAEND ((uint32_t)0x00000100) |
| #define | SDIO_IT_DBCKEND ((uint32_t)0x00000400) |
| #define | SDIO_IT_DCRCFAIL ((uint32_t)0x00000002) |
| #define | SDIO_IT_DTIMEOUT ((uint32_t)0x00000008) |
| #define | SDIO_IT_RXACT ((uint32_t)0x00002000) |
| #define | SDIO_IT_RXDAVL ((uint32_t)0x00200000) |
| #define | SDIO_IT_RXFIFOE ((uint32_t)0x00080000) |
| #define | SDIO_IT_RXFIFOF ((uint32_t)0x00020000) |
| #define | SDIO_IT_RXFIFOHF ((uint32_t)0x00008000) |
| #define | SDIO_IT_RXOVERR ((uint32_t)0x00000020) |
| #define | SDIO_IT_SDIOIT ((uint32_t)0x00400000) |
| #define | SDIO_IT_STBITERR ((uint32_t)0x00000200) |
| #define | SDIO_IT_TXACT ((uint32_t)0x00001000) |
| #define | SDIO_IT_TXDAVL ((uint32_t)0x00100000) |
| #define | SDIO_IT_TXFIFOE ((uint32_t)0x00040000) |
| #define | SDIO_IT_TXFIFOF ((uint32_t)0x00010000) |
| #define | SDIO_IT_TXFIFOHE ((uint32_t)0x00004000) |
| #define | SDIO_IT_TXUNDERR ((uint32_t)0x00000010) |
| #define | SDIO_PowerState_OFF ((uint32_t)0x00000000) |
| #define | SDIO_PowerState_ON ((uint32_t)0x00000003) |
| #define | SDIO_ReadWaitMode_CLK ((uint32_t)0x00000001) |
| #define | SDIO_ReadWaitMode_DATA2 ((uint32_t)0x00000000) |
| #define | SDIO_RESP1 ((uint32_t)0x00000000) |
| #define | SDIO_RESP2 ((uint32_t)0x00000004) |
| #define | SDIO_RESP3 ((uint32_t)0x00000008) |
| #define | SDIO_RESP4 ((uint32_t)0x0000000C) |
| #define | SDIO_Response_Long ((uint32_t)0x000000C0) |
| #define | SDIO_Response_No ((uint32_t)0x00000000) |
| #define | SDIO_Response_Short ((uint32_t)0x00000040) |
| #define | SDIO_TransferDir_ToCard ((uint32_t)0x00000000) |
| #define | SDIO_TransferDir_ToSDIO ((uint32_t)0x00000002) |
| #define | SDIO_TransferMode_Block ((uint32_t)0x00000000) |
| #define | SDIO_TransferMode_Stream ((uint32_t)0x00000004) |
| #define | SDIO_Wait_IT ((uint32_t)0x00000100) |
| #define | SDIO_Wait_No ((uint32_t)0x00000000) |
| #define | SDIO_Wait_Pend ((uint32_t)0x00000200) |
Functions | |
| void | SDIO_CEATAITCmd (FunctionalState NewState) |
| Enables or disables the CE-ATA interrupt. More... | |
| void | SDIO_ClearFlag (uint32_t SDIO_FLAG) |
| Clears the SDIO's pending flags. More... | |
| void | SDIO_ClearITPendingBit (uint32_t SDIO_IT) |
| Clears the SDIO's interrupt pending bits. More... | |
| void | SDIO_ClockCmd (FunctionalState NewState) |
| Enables or disables the SDIO Clock. More... | |
| void | SDIO_CmdStructInit (SDIO_CmdInitTypeDef *SDIO_CmdInitStruct) |
| Fills each SDIO_CmdInitStruct member with its default value. More... | |
| void | SDIO_CommandCompletionCmd (FunctionalState NewState) |
| Enables or disables the command completion signal. More... | |
| void | SDIO_DataConfig (SDIO_DataInitTypeDef *SDIO_DataInitStruct) |
| Initializes the SDIO data path according to the specified parameters in the SDIO_DataInitStruct. More... | |
| void | SDIO_DataStructInit (SDIO_DataInitTypeDef *SDIO_DataInitStruct) |
| Fills each SDIO_DataInitStruct member with its default value. More... | |
| void | SDIO_DeInit (void) |
| Deinitializes the SDIO peripheral registers to their default reset values. More... | |
| void | SDIO_DMACmd (FunctionalState NewState) |
| Enables or disables the SDIO DMA request. More... | |
| uint8_t | SDIO_GetCommandResponse (void) |
| Returns command index of last command for which response received. More... | |
| uint32_t | SDIO_GetDataCounter (void) |
| Returns number of remaining data bytes to be transferred. More... | |
| uint32_t | SDIO_GetFIFOCount (void) |
| Returns the number of words left to be written to or read from FIFO. More... | |
| FlagStatus | SDIO_GetFlagStatus (uint32_t SDIO_FLAG) |
| Checks whether the specified SDIO flag is set or not. More... | |
| ITStatus | SDIO_GetITStatus (uint32_t SDIO_IT) |
| Checks whether the specified SDIO interrupt has occurred or not. More... | |
| uint32_t | SDIO_GetPowerState (void) |
| Gets the power status of the controller. More... | |
| uint32_t | SDIO_GetResponse (uint32_t SDIO_RESP) |
| Returns response received from the card for the last command. More... | |
| void | SDIO_Init (SDIO_InitTypeDef *SDIO_InitStruct) |
| Initializes the SDIO peripheral according to the specified parameters in the SDIO_InitStruct. More... | |
| void | SDIO_ITConfig (uint32_t SDIO_IT, FunctionalState NewState) |
| Enables or disables the SDIO interrupts. More... | |
| uint32_t | SDIO_ReadData (void) |
| Read one data word from Rx FIFO. More... | |
| void | SDIO_SendCEATACmd (FunctionalState NewState) |
| Sends CE-ATA command (CMD61). More... | |
| void | SDIO_SendCommand (SDIO_CmdInitTypeDef *SDIO_CmdInitStruct) |
| Initializes the SDIO Command according to the specified parameters in the SDIO_CmdInitStruct and send the command. More... | |
| void | SDIO_SendSDIOSuspendCmd (FunctionalState NewState) |
| Enables or disables the SD I/O Mode suspend command sending. More... | |
| void | SDIO_SetPowerState (uint32_t SDIO_PowerState) |
| Sets the power status of the controller. More... | |
| void | SDIO_SetSDIOOperation (FunctionalState NewState) |
| Enables or disables the SD I/O Mode Operation. More... | |
| void | SDIO_SetSDIOReadWaitMode (uint32_t SDIO_ReadWaitMode) |
| Sets one of the two options of inserting read wait interval. More... | |
| void | SDIO_StartSDIOReadWait (FunctionalState NewState) |
| Starts the SD I/O Read Wait operation. More... | |
| void | SDIO_StopSDIOReadWait (FunctionalState NewState) |
| Stops the SD I/O Read Wait operation. More... | |
| void | SDIO_StructInit (SDIO_InitTypeDef *SDIO_InitStruct) |
| Fills each SDIO_InitStruct member with its default value. More... | |
| void | SDIO_WriteData (uint32_t Data) |
| Write one data word to Tx FIFO. More... | |
Detailed Description
This file contains all the functions prototypes for the SDIO firmware library.
- Version
- V3.5.0
- Date
- 11-March-2011
- Attention
THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.
© COPYRIGHT 2011 STMicroelectronics
Definition in file stm32f10x_sdio.h.
