stm32f10x_rtc.c File Reference

This file provides all the RTC firmware functions. More...

#include "stm32f10x_rtc.h"

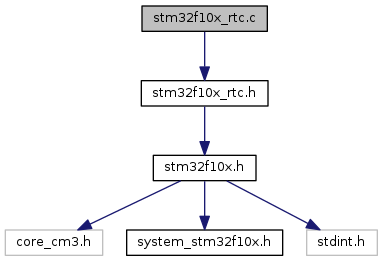

Include dependency graph for stm32f10x_rtc.c:

Go to the source code of this file.

Macros
#define	PRLH_MSB_MASK   ((uint32_t)0x000F0000)
#define	RTC_LSB_MASK   ((uint32_t)0x0000FFFF)

Functions
void	RTC_ClearFlag (uint16_t RTC_FLAG)
	Clears the RTC's pending flags. More...
void	RTC_ClearITPendingBit (uint16_t RTC_IT)
	Clears the RTC's interrupt pending bits. More...
void	RTC_EnterConfigMode (void)
	Enters the RTC configuration mode. More...
void	RTC_ExitConfigMode (void)
	Exits from the RTC configuration mode. More...
uint32_t	RTC_GetCounter (void)
	Gets the RTC counter value. More...
uint32_t	RTC_GetDivider (void)
	Gets the RTC divider value. More...
FlagStatus	RTC_GetFlagStatus (uint16_t RTC_FLAG)
	Checks whether the specified RTC flag is set or not. More...
ITStatus	RTC_GetITStatus (uint16_t RTC_IT)
	Checks whether the specified RTC interrupt has occurred or not. More...
void	RTC_ITConfig (uint16_t RTC_IT, FunctionalState NewState)
	Enables or disables the specified RTC interrupts. More...
void	RTC_SetAlarm (uint32_t AlarmValue)
	Sets the RTC alarm value. More...
void	RTC_SetCounter (uint32_t CounterValue)
	Sets the RTC counter value. More...
void	RTC_SetPrescaler (uint32_t PrescalerValue)
	Sets the RTC prescaler value. More...
void	RTC_WaitForLastTask (void)
	Waits until last write operation on RTC registers has finished. More...
void	RTC_WaitForSynchro (void)
	Waits until the RTC registers (RTC_CNT, RTC_ALR and RTC_PRL) are synchronized with RTC APB clock. More...

Detailed Description

This file provides all the RTC firmware functions.

Author

MCD Application Team

Version

V3.5.0

Date

11-March-2011

Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.

© COPYRIGHT 2011 STMicroelectronics

Definition in file stm32f10x_rtc.c.
