stm32f10x_rcc.h File Reference

This file contains all the functions prototypes for the RCC firmware library. More...

#include "stm32f10x.h"

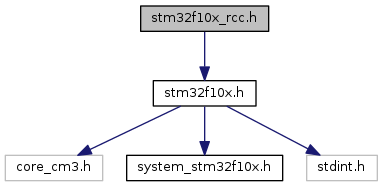

Include dependency graph for stm32f10x_rcc.h:

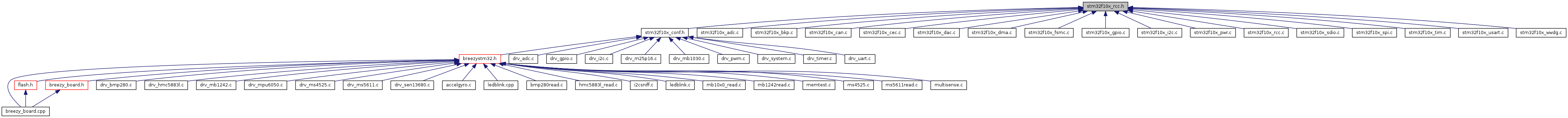

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  RCC_ClocksTypeDef


Macros

#define IS_RCC_ADCCLK(ADCCLK)

#define IS_RCC_AHB_PERIPH(PERIPH)   ((((PERIPH) & 0xFFFFFAA8) == 0x00) && ((PERIPH) != 0x00))

#define IS_RCC_APB1_PERIPH(PERIPH)   ((((PERIPH) & 0x81013600) == 0x00) && ((PERIPH) != 0x00))

#define IS_RCC_APB2_PERIPH(PERIPH)   ((((PERIPH) & 0xFFC00002) == 0x00) && ((PERIPH) != 0x00))

#define IS_RCC_CALIBRATION_VALUE(VALUE)   ((VALUE) <= 0x1F)

#define IS_RCC_CLEAR_IT(IT)   ((((IT) & (uint8_t)0x60) == 0x00) && ((IT) != 0x00))

#define IS_RCC_FLAG(FLAG)

#define IS_RCC_GET_IT(IT)

#define IS_RCC_HCLK(HCLK)

#define IS_RCC_HSE(HSE)

#define IS_RCC_IT(IT)   ((((IT) & (uint8_t)0xE0) == 0x00) && ((IT) != 0x00))

#define IS_RCC_LSE(LSE)

#define IS_RCC_MCO(MCO)

#define IS_RCC_PCLK(PCLK)

#define IS_RCC_PLL_MUL(MUL)

#define IS_RCC_PLL_SOURCE(SOURCE)

#define IS_RCC_RTCCLK_SOURCE(SOURCE)

#define IS_RCC_SYSCLK_SOURCE(SOURCE)

#define IS_RCC_USBCLK_SOURCE(SOURCE)

#define RCC_AHBPeriph_CRC   ((uint32_t)0x00000040)

#define RCC_AHBPeriph_DMA1   ((uint32_t)0x00000001)

#define RCC_AHBPeriph_DMA2   ((uint32_t)0x00000002)

#define RCC_AHBPeriph_FLITF   ((uint32_t)0x00000010)

#define RCC_AHBPeriph_FSMC   ((uint32_t)0x00000100)

#define RCC_AHBPeriph_SDIO   ((uint32_t)0x00000400)

#define RCC_AHBPeriph_SRAM   ((uint32_t)0x00000004)

#define RCC_APB1Periph_BKP   ((uint32_t)0x08000000)

#define RCC_APB1Periph_CAN1   ((uint32_t)0x02000000)

#define RCC_APB1Periph_CAN2   ((uint32_t)0x04000000)

#define RCC_APB1Periph_CEC   ((uint32_t)0x40000000)

#define RCC_APB1Periph_DAC   ((uint32_t)0x20000000)

#define RCC_APB1Periph_I2C1   ((uint32_t)0x00200000)

#define RCC_APB1Periph_I2C2   ((uint32_t)0x00400000)

#define RCC_APB1Periph_PWR   ((uint32_t)0x10000000)

#define RCC_APB1Periph_SPI2   ((uint32_t)0x00004000)

#define RCC_APB1Periph_SPI3   ((uint32_t)0x00008000)

#define RCC_APB1Periph_TIM12   ((uint32_t)0x00000040)

#define RCC_APB1Periph_TIM13   ((uint32_t)0x00000080)

#define RCC_APB1Periph_TIM14   ((uint32_t)0x00000100)

#define RCC_APB1Periph_TIM2   ((uint32_t)0x00000001)

#define RCC_APB1Periph_TIM3   ((uint32_t)0x00000002)

#define RCC_APB1Periph_TIM4   ((uint32_t)0x00000004)

#define RCC_APB1Periph_TIM5   ((uint32_t)0x00000008)

#define RCC_APB1Periph_TIM6   ((uint32_t)0x00000010)

#define RCC_APB1Periph_TIM7   ((uint32_t)0x00000020)

#define RCC_APB1Periph_UART4   ((uint32_t)0x00080000)

#define RCC_APB1Periph_UART5   ((uint32_t)0x00100000)

#define RCC_APB1Periph_USART2   ((uint32_t)0x00020000)

#define RCC_APB1Periph_USART3   ((uint32_t)0x00040000)

#define RCC_APB1Periph_USB   ((uint32_t)0x00800000)

#define RCC_APB1Periph_WWDG   ((uint32_t)0x00000800)

#define RCC_APB2Periph_ADC1   ((uint32_t)0x00000200)

#define RCC_APB2Periph_ADC2   ((uint32_t)0x00000400)

#define RCC_APB2Periph_ADC3   ((uint32_t)0x00008000)

#define RCC_APB2Periph_AFIO   ((uint32_t)0x00000001)

#define RCC_APB2Periph_GPIOA   ((uint32_t)0x00000004)

#define RCC_APB2Periph_GPIOB   ((uint32_t)0x00000008)

#define RCC_APB2Periph_GPIOC   ((uint32_t)0x00000010)

#define RCC_APB2Periph_GPIOD   ((uint32_t)0x00000020)

#define RCC_APB2Periph_GPIOE   ((uint32_t)0x00000040)

#define RCC_APB2Periph_GPIOF   ((uint32_t)0x00000080)

#define RCC_APB2Periph_GPIOG   ((uint32_t)0x00000100)

#define RCC_APB2Periph_SPI1   ((uint32_t)0x00001000)

#define RCC_APB2Periph_TIM1   ((uint32_t)0x00000800)

#define RCC_APB2Periph_TIM10   ((uint32_t)0x00100000)

#define RCC_APB2Periph_TIM11   ((uint32_t)0x00200000)

#define RCC_APB2Periph_TIM15   ((uint32_t)0x00010000)

#define RCC_APB2Periph_TIM16   ((uint32_t)0x00020000)

#define RCC_APB2Periph_TIM17   ((uint32_t)0x00040000)

#define RCC_APB2Periph_TIM8   ((uint32_t)0x00002000)

#define RCC_APB2Periph_TIM9   ((uint32_t)0x00080000)

#define RCC_APB2Periph_USART1   ((uint32_t)0x00004000)

#define RCC_FLAG_HSERDY   ((uint8_t)0x31)

#define RCC_FLAG_HSIRDY   ((uint8_t)0x21)

#define RCC_FLAG_IWDGRST   ((uint8_t)0x7D)

#define RCC_FLAG_LPWRRST   ((uint8_t)0x7F)

#define RCC_FLAG_LSERDY   ((uint8_t)0x41)

#define RCC_FLAG_LSIRDY   ((uint8_t)0x61)

#define RCC_FLAG_PINRST   ((uint8_t)0x7A)

#define RCC_FLAG_PLLRDY   ((uint8_t)0x39)

#define RCC_FLAG_PORRST   ((uint8_t)0x7B)

#define RCC_FLAG_SFTRST   ((uint8_t)0x7C)

#define RCC_FLAG_WWDGRST   ((uint8_t)0x7E)

#define RCC_HCLK_Div1   ((uint32_t)0x00000000)

#define RCC_HCLK_Div16   ((uint32_t)0x00000700)

#define RCC_HCLK_Div2   ((uint32_t)0x00000400)

#define RCC_HCLK_Div4   ((uint32_t)0x00000500)

#define RCC_HCLK_Div8   ((uint32_t)0x00000600)

#define RCC_HSE_Bypass   ((uint32_t)0x00040000)

#define RCC_HSE_OFF   ((uint32_t)0x00000000)

#define RCC_HSE_ON   ((uint32_t)0x00010000)

#define RCC_IT_CSS   ((uint8_t)0x80)

#define RCC_IT_HSERDY   ((uint8_t)0x08)

#define RCC_IT_HSIRDY   ((uint8_t)0x04)

#define RCC_IT_LSERDY   ((uint8_t)0x02)

#define RCC_IT_LSIRDY   ((uint8_t)0x01)

#define RCC_IT_PLLRDY   ((uint8_t)0x10)

#define RCC_LSE_Bypass   ((uint8_t)0x04)

#define RCC_LSE_OFF   ((uint8_t)0x00)

#define RCC_LSE_ON   ((uint8_t)0x01)

#define RCC_MCO_HSE   ((uint8_t)0x06)

#define RCC_MCO_HSI   ((uint8_t)0x05)

#define RCC_MCO_NoClock   ((uint8_t)0x00)

#define RCC_MCO_PLLCLK_Div2   ((uint8_t)0x07)

#define RCC_MCO_SYSCLK   ((uint8_t)0x04)

#define RCC_PCLK2_Div2   ((uint32_t)0x00000000)

#define RCC_PCLK2_Div4   ((uint32_t)0x00004000)

#define RCC_PCLK2_Div6   ((uint32_t)0x00008000)

#define RCC_PCLK2_Div8   ((uint32_t)0x0000C000)

#define RCC_PLLMul_10   ((uint32_t)0x00200000)

#define RCC_PLLMul_11   ((uint32_t)0x00240000)

#define RCC_PLLMul_12   ((uint32_t)0x00280000)

#define RCC_PLLMul_13   ((uint32_t)0x002C0000)

#define RCC_PLLMul_14   ((uint32_t)0x00300000)

#define RCC_PLLMul_15   ((uint32_t)0x00340000)

#define RCC_PLLMul_16   ((uint32_t)0x00380000)

#define RCC_PLLMul_2   ((uint32_t)0x00000000)

#define RCC_PLLMul_3   ((uint32_t)0x00040000)

#define RCC_PLLMul_4   ((uint32_t)0x00080000)

#define RCC_PLLMul_5   ((uint32_t)0x000C0000)

#define RCC_PLLMul_6   ((uint32_t)0x00100000)

#define RCC_PLLMul_7   ((uint32_t)0x00140000)

#define RCC_PLLMul_8   ((uint32_t)0x00180000)

#define RCC_PLLMul_9   ((uint32_t)0x001C0000)

#define RCC_PLLSource_HSE_Div1   ((uint32_t)0x00010000)

#define RCC_PLLSource_HSE_Div2   ((uint32_t)0x00030000)

#define RCC_PLLSource_HSI_Div2   ((uint32_t)0x00000000)

#define RCC_RTCCLKSource_HSE_Div128   ((uint32_t)0x00000300)

#define RCC_RTCCLKSource_LSE   ((uint32_t)0x00000100)

#define RCC_RTCCLKSource_LSI   ((uint32_t)0x00000200)

#define RCC_SYSCLK_Div1   ((uint32_t)0x00000000)

#define RCC_SYSCLK_Div128   ((uint32_t)0x000000D0)

#define RCC_SYSCLK_Div16   ((uint32_t)0x000000B0)

#define RCC_SYSCLK_Div2   ((uint32_t)0x00000080)

#define RCC_SYSCLK_Div256   ((uint32_t)0x000000E0)

#define RCC_SYSCLK_Div4   ((uint32_t)0x00000090)

#define RCC_SYSCLK_Div512   ((uint32_t)0x000000F0)

#define RCC_SYSCLK_Div64   ((uint32_t)0x000000C0)

#define RCC_SYSCLK_Div8   ((uint32_t)0x000000A0)

#define RCC_SYSCLKSource_HSE   ((uint32_t)0x00000001)

#define RCC_SYSCLKSource_HSI   ((uint32_t)0x00000000)

#define RCC_SYSCLKSource_PLLCLK   ((uint32_t)0x00000002)

#define RCC_USBCLKSource_PLLCLK_1Div5   ((uint8_t)0x00)

#define RCC_USBCLKSource_PLLCLK_Div1   ((uint8_t)0x01)


Functions

void RCC_ADCCLKConfig (uint32_t RCC_PCLK2)
 Configures the ADC clock (ADCCLK). More...

void RCC_AdjustHSICalibrationValue (uint8_t HSICalibrationValue)
 Adjusts the Internal High Speed oscillator (HSI) calibration value. More...

void RCC_AHBPeriphClockCmd (uint32_t RCC_AHBPeriph, FunctionalState NewState)
 Enables or disables the AHB peripheral clock. More...

void RCC_APB1PeriphClockCmd (uint32_t RCC_APB1Periph, FunctionalState NewState)
 Enables or disables the Low Speed APB (APB1) peripheral clock. More...

void RCC_APB1PeriphResetCmd (uint32_t RCC_APB1Periph, FunctionalState NewState)
 Forces or releases Low Speed APB (APB1) peripheral reset. More...

void RCC_APB2PeriphClockCmd (uint32_t RCC_APB2Periph, FunctionalState NewState)
 Enables or disables the High Speed APB (APB2) peripheral clock. More...

void RCC_APB2PeriphResetCmd (uint32_t RCC_APB2Periph, FunctionalState NewState)
 Forces or releases High Speed APB (APB2) peripheral reset. More...

void RCC_BackupResetCmd (FunctionalState NewState)
 Forces or releases the Backup domain reset. More...

void RCC_ClearFlag (void)
 Clears the RCC reset flags. The reset flags are: RCC_FLAG_PINRST, RCC_FLAG_PORRST, RCC_FLAG_SFTRST, RCC_FLAG_IWDGRST, RCC_FLAG_WWDGRST, RCC_FLAG_LPWRRST. More...

void RCC_ClearITPendingBit (uint8_t RCC_IT)
 Clears the RCC's interrupt pending bits. More...

void RCC_ClockSecuritySystemCmd (FunctionalState NewState)
 Enables or disables the Clock Security System. More...

void RCC_DeInit (void)
 Resets the RCC clock configuration to the default reset state. More...

void RCC_GetClocksFreq (RCC_ClocksTypeDef *RCC_Clocks)
 Returns the frequencies of different on chip clocks; SYSCLK, HCLK, PCLK1 and PCLK2. More...

FlagStatus RCC_GetFlagStatus (uint8_t RCC_FLAG)
 Checks whether the specified RCC flag is set or not. More...

ITStatus RCC_GetITStatus (uint8_t RCC_IT)
 Checks whether the specified RCC interrupt has occurred or not. More...

uint8_t RCC_GetSYSCLKSource (void)
 Returns the clock source used as system clock. More...

void RCC_HCLKConfig (uint32_t RCC_SYSCLK)
 Configures the AHB clock (HCLK). More...

void RCC_HSEConfig (uint32_t RCC_HSE)
 Configures the External High Speed oscillator (HSE). More...

void RCC_HSICmd (FunctionalState NewState)
 Enables or disables the Internal High Speed oscillator (HSI). More...

void RCC_ITConfig (uint8_t RCC_IT, FunctionalState NewState)
 Enables or disables the specified RCC interrupts. More...

void RCC_LSEConfig (uint8_t RCC_LSE)
 Configures the External Low Speed oscillator (LSE). More...

void RCC_LSICmd (FunctionalState NewState)
 Enables or disables the Internal Low Speed oscillator (LSI). More...

void RCC_MCOConfig (uint8_t RCC_MCO)
 Selects the clock source to output on MCO pin. More...

void RCC_PCLK1Config (uint32_t RCC_HCLK)
 Configures the Low Speed APB clock (PCLK1). More...

void RCC_PCLK2Config (uint32_t RCC_HCLK)
 Configures the High Speed APB clock (PCLK2). More...

void RCC_PLLCmd (FunctionalState NewState)
 Enables or disables the main PLL. More...

void RCC_PLLConfig (uint32_t RCC_PLLSource, uint32_t RCC_PLLMul)
 Configures the PLL clock source and multiplication factor. More...

void RCC_RTCCLKCmd (FunctionalState NewState)
 Enables or disables the RTC clock. More...

void RCC_RTCCLKConfig (uint32_t RCC_RTCCLKSource)
 Configures the RTC clock (RTCCLK). More...

void RCC_SYSCLKConfig (uint32_t RCC_SYSCLKSource)
 Configures the system clock (SYSCLK). More...

void RCC_USBCLKConfig (uint32_t RCC_USBCLKSource)
 Configures the USB clock (USBCLK). More...

ErrorStatus RCC_WaitForHSEStartUp (void)
 Waits for HSE start-up. More...


Detailed Description

This file contains all the functions prototypes for the RCC firmware library.

Author
MCD Application Team
Version
V3.5.0
Date
11-March-2011
Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.

© COPYRIGHT 2011 STMicroelectronics

Definition in file stm32f10x_rcc.h.
