stm32f10x_flash.c File Reference

This file provides all the FLASH firmware functions. More...

#include "stm32f10x_flash.h"

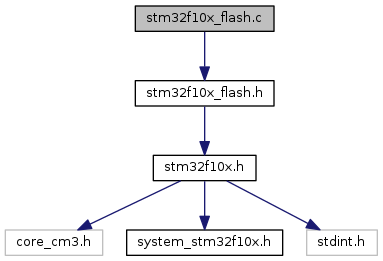

Include dependency graph for stm32f10x_flash.c:

Go to the source code of this file.

Macros

#define ACR_HLFCYA_Mask   ((uint32_t)0xFFFFFFF7)

#define ACR_LATENCY_Mask   ((uint32_t)0x00000038)

#define ACR_PRFTBE_Mask   ((uint32_t)0xFFFFFFEF)

#define ACR_PRFTBS_Mask   ((uint32_t)0x00000020)

#define CR_LOCK_Set   ((uint32_t)0x00000080)

#define CR_MER_Reset   ((uint32_t)0x00001FFB)

#define CR_MER_Set   ((uint32_t)0x00000004)

#define CR_OPTER_Reset   ((uint32_t)0x00001FDF)

#define CR_OPTER_Set   ((uint32_t)0x00000020)

#define CR_OPTPG_Reset   ((uint32_t)0x00001FEF)

#define CR_OPTPG_Set   ((uint32_t)0x00000010)

#define CR_PER_Reset   ((uint32_t)0x00001FFD)

#define CR_PER_Set   ((uint32_t)0x00000002)

#define CR_PG_Reset   ((uint32_t)0x00001FFE)

#define CR_PG_Set   ((uint32_t)0x00000001)

#define CR_STRT_Set   ((uint32_t)0x00000040)

#define EraseTimeout   ((uint32_t)0x000B0000)

#define FLASH_BANK1_END_ADDRESS   ((uint32_t)0x807FFFF)

#define FLASH_KEY1   ((uint32_t)0x45670123)

#define FLASH_KEY2   ((uint32_t)0xCDEF89AB)

#define OB_USER_BFB2   ((uint16_t)0x0008)

#define ProgramTimeout   ((uint32_t)0x00002000)

#define RDP_Key   ((uint16_t)0x00A5)

#define RDPRT_Mask   ((uint32_t)0x00000002)

#define WRP0_Mask   ((uint32_t)0x000000FF)

#define WRP1_Mask   ((uint32_t)0x0000FF00)

#define WRP2_Mask   ((uint32_t)0x00FF0000)

#define WRP3_Mask   ((uint32_t)0xFF000000)


Functions

void FLASH_ClearFlag (uint32_t FLASH_FLAG)
 Clears the FLASH's pending flags. More...

FLASH_Status FLASH_EnableWriteProtection (uint32_t FLASH_Pages)
 Write protects the desired pages. More...

FLASH_Status FLASH_EraseAllBank1Pages (void)
 Erases all Bank1 FLASH pages. More...

FLASH_Status FLASH_EraseAllPages (void)
 Erases all FLASH pages. More...

FLASH_Status FLASH_EraseOptionBytes (void)
 Erases the FLASH option bytes. More...

FLASH_Status FLASH_ErasePage (uint32_t Page_Address)
 Erases a specified FLASH page. More...

FLASH_Status FLASH_GetBank1Status (void)
 Returns the FLASH Bank1 Status. More...

FlagStatus FLASH_GetFlagStatus (uint32_t FLASH_FLAG)
 Checks whether the specified FLASH flag is set or not. More...

FlagStatus FLASH_GetPrefetchBufferStatus (void)
 Checks whether the FLASH Prefetch Buffer status is set or not. More...

FlagStatus FLASH_GetReadOutProtectionStatus (void)
 Checks whether the FLASH Read Out Protection Status is set or not. More...

FLASH_Status FLASH_GetStatus (void)
 Returns the FLASH Status. More...

uint32_t FLASH_GetUserOptionByte (void)
 Returns the FLASH User Option Bytes values. More...

uint32_t FLASH_GetWriteProtectionOptionByte (void)
 Returns the FLASH Write Protection Option Bytes Register value. More...

void FLASH_HalfCycleAccessCmd (uint32_t FLASH_HalfCycleAccess)
 Enables or disables the Half cycle flash access. More...

void FLASH_ITConfig (uint32_t FLASH_IT, FunctionalState NewState)
 Enables or disables the specified FLASH interrupts. More...

void FLASH_Lock (void)
 Locks the FLASH Program Erase Controller. More...

void FLASH_LockBank1 (void)
 Locks the FLASH Bank1 Program Erase Controller. More...

void FLASH_PrefetchBufferCmd (uint32_t FLASH_PrefetchBuffer)
 Enables or disables the Prefetch Buffer. More...

FLASH_Status FLASH_ProgramHalfWord (uint32_t Address, uint16_t Data)
 Programs a half word at a specified address. More...

FLASH_Status FLASH_ProgramOptionByteData (uint32_t Address, uint8_t Data)
 Programs a half word at a specified Option Byte Data address. More...

FLASH_Status FLASH_ProgramWord (uint32_t Address, uint32_t Data)
 Programs a word at a specified address. More...

FLASH_Status FLASH_ReadOutProtection (FunctionalState NewState)
 Enables or disables the read out protection. More...

void FLASH_SetLatency (uint32_t FLASH_Latency)
 Sets the code latency value. More...

void FLASH_Unlock (void)
 Unlocks the FLASH Program Erase Controller. More...

void FLASH_UnlockBank1 (void)
 Unlocks the FLASH Bank1 Program Erase Controller. More...

FLASH_Status FLASH_UserOptionByteConfig (uint16_t OB_IWDG, uint16_t OB_STOP, uint16_t OB_STDBY)
 Programs the FLASH User Option Byte: IWDG_SW / RST_STOP / RST_STDBY. More...

FLASH_Status FLASH_WaitForLastBank1Operation (uint32_t Timeout)
 Waits for a Flash operation on Bank1 to complete or a TIMEOUT to occur. More...

FLASH_Status FLASH_WaitForLastOperation (uint32_t Timeout)
 Waits for a Flash operation to complete or a TIMEOUT to occur. More...


Detailed Description

This file provides all the FLASH firmware functions.

Author
MCD Application Team
Version
V3.5.0
Date
11-March-2011
Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.

© COPYRIGHT 2011 STMicroelectronics

Definition in file stm32f10x_flash.c.
