Macros | Functions
stm32f10x_dma.c File Reference

This file provides all the DMA firmware functions. More...

#include "stm32f10x_dma.h"
#include "stm32f10x_rcc.h"

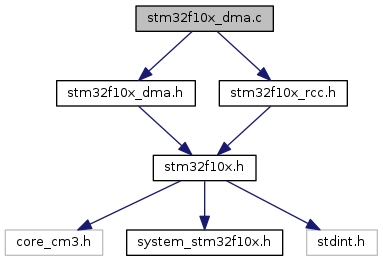

Include dependency graph for stm32f10x_dma.c:

Go to the source code of this file.

Macros

#define CCR_CLEAR_Mask   ((uint32_t)0xFFFF800F)

#define DMA1_Channel1_IT_Mask   ((uint32_t)(DMA_ISR_GIF1 | DMA_ISR_TCIF1 | DMA_ISR_HTIF1 | DMA_ISR_TEIF1))

#define DMA1_Channel2_IT_Mask   ((uint32_t)(DMA_ISR_GIF2 | DMA_ISR_TCIF2 | DMA_ISR_HTIF2 | DMA_ISR_TEIF2))

#define DMA1_Channel3_IT_Mask   ((uint32_t)(DMA_ISR_GIF3 | DMA_ISR_TCIF3 | DMA_ISR_HTIF3 | DMA_ISR_TEIF3))

#define DMA1_Channel4_IT_Mask   ((uint32_t)(DMA_ISR_GIF4 | DMA_ISR_TCIF4 | DMA_ISR_HTIF4 | DMA_ISR_TEIF4))

#define DMA1_Channel5_IT_Mask   ((uint32_t)(DMA_ISR_GIF5 | DMA_ISR_TCIF5 | DMA_ISR_HTIF5 | DMA_ISR_TEIF5))

#define DMA1_Channel6_IT_Mask   ((uint32_t)(DMA_ISR_GIF6 | DMA_ISR_TCIF6 | DMA_ISR_HTIF6 | DMA_ISR_TEIF6))

#define DMA1_Channel7_IT_Mask   ((uint32_t)(DMA_ISR_GIF7 | DMA_ISR_TCIF7 | DMA_ISR_HTIF7 | DMA_ISR_TEIF7))

#define DMA2_Channel1_IT_Mask   ((uint32_t)(DMA_ISR_GIF1 | DMA_ISR_TCIF1 | DMA_ISR_HTIF1 | DMA_ISR_TEIF1))

#define DMA2_Channel2_IT_Mask   ((uint32_t)(DMA_ISR_GIF2 | DMA_ISR_TCIF2 | DMA_ISR_HTIF2 | DMA_ISR_TEIF2))

#define DMA2_Channel3_IT_Mask   ((uint32_t)(DMA_ISR_GIF3 | DMA_ISR_TCIF3 | DMA_ISR_HTIF3 | DMA_ISR_TEIF3))

#define DMA2_Channel4_IT_Mask   ((uint32_t)(DMA_ISR_GIF4 | DMA_ISR_TCIF4 | DMA_ISR_HTIF4 | DMA_ISR_TEIF4))

#define DMA2_Channel5_IT_Mask   ((uint32_t)(DMA_ISR_GIF5 | DMA_ISR_TCIF5 | DMA_ISR_HTIF5 | DMA_ISR_TEIF5))

#define FLAG_Mask   ((uint32_t)0x10000000)


Functions

void DMA_ClearFlag (uint32_t DMAy_FLAG)
 Clears the DMAy Channelx's pending flags. More...

void DMA_ClearITPendingBit (uint32_t DMAy_IT)
 Clears the DMAy Channelx's interrupt pending bits. More...

void DMA_Cmd (DMA_Channel_TypeDef *DMAy_Channelx, FunctionalState NewState)
 Enables or disables the specified DMAy Channelx. More...

void DMA_DeInit (DMA_Channel_TypeDef *DMAy_Channelx)
 Deinitializes the DMAy Channelx registers to their default reset values. More...

uint16_t DMA_GetCurrDataCounter (DMA_Channel_TypeDef *DMAy_Channelx)
 Returns the number of remaining data units in the current DMAy Channelx transfer. More...

FlagStatus DMA_GetFlagStatus (uint32_t DMAy_FLAG)
 Checks whether the specified DMAy Channelx flag is set or not. More...

ITStatus DMA_GetITStatus (uint32_t DMAy_IT)
 Checks whether the specified DMAy Channelx interrupt has occurred or not. More...

void DMA_Init (DMA_Channel_TypeDef *DMAy_Channelx, DMA_InitTypeDef *DMA_InitStruct)
 Initializes the DMAy Channelx according to the specified parameters in the DMA_InitStruct. More...

void DMA_ITConfig (DMA_Channel_TypeDef *DMAy_Channelx, uint32_t DMA_IT, FunctionalState NewState)
 Enables or disables the specified DMAy Channelx interrupts. More...

void DMA_SetCurrDataCounter (DMA_Channel_TypeDef *DMAy_Channelx, uint16_t DataNumber)
 Sets the number of data units in the current DMAy Channelx transfer. More...

void DMA_StructInit (DMA_InitTypeDef *DMA_InitStruct)
 Fills each DMA_InitStruct member with its default value. More...


Detailed Description

This file provides all the DMA firmware functions.

Author
MCD Application Team
Version
V3.5.0
Date
11-March-2011
Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.

© COPYRIGHT 2011 STMicroelectronics

Definition in file stm32f10x_dma.c.
