Macros | Functions
stm32f10x_dbgmcu.h File Reference

This file contains all the functions prototypes for the DBGMCU firmware library. More...

#include "stm32f10x.h"

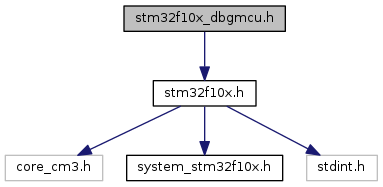

Include dependency graph for stm32f10x_dbgmcu.h:

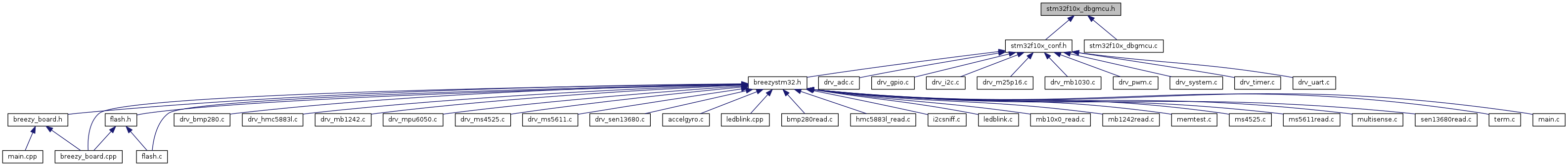

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define DBGMCU_CAN1_STOP   ((uint32_t)0x00004000)

#define DBGMCU_CAN2_STOP   ((uint32_t)0x00200000)

#define DBGMCU_I2C1_SMBUS_TIMEOUT   ((uint32_t)0x00008000)

#define DBGMCU_I2C2_SMBUS_TIMEOUT   ((uint32_t)0x00010000)

#define DBGMCU_IWDG_STOP   ((uint32_t)0x00000100)

#define DBGMCU_SLEEP   ((uint32_t)0x00000001)

#define DBGMCU_STANDBY   ((uint32_t)0x00000004)

#define DBGMCU_STOP   ((uint32_t)0x00000002)

#define DBGMCU_TIM10_STOP   ((uint32_t)0x20000000)

#define DBGMCU_TIM11_STOP   ((uint32_t)0x40000000)

#define DBGMCU_TIM12_STOP   ((uint32_t)0x02000000)

#define DBGMCU_TIM13_STOP   ((uint32_t)0x04000000)

#define DBGMCU_TIM14_STOP   ((uint32_t)0x08000000)

#define DBGMCU_TIM15_STOP   ((uint32_t)0x00400000)

#define DBGMCU_TIM16_STOP   ((uint32_t)0x00800000)

#define DBGMCU_TIM17_STOP   ((uint32_t)0x01000000)

#define DBGMCU_TIM1_STOP   ((uint32_t)0x00000400)

#define DBGMCU_TIM2_STOP   ((uint32_t)0x00000800)

#define DBGMCU_TIM3_STOP   ((uint32_t)0x00001000)

#define DBGMCU_TIM4_STOP   ((uint32_t)0x00002000)

#define DBGMCU_TIM5_STOP   ((uint32_t)0x00040000)

#define DBGMCU_TIM6_STOP   ((uint32_t)0x00080000)

#define DBGMCU_TIM7_STOP   ((uint32_t)0x00100000)

#define DBGMCU_TIM8_STOP   ((uint32_t)0x00020000)

#define DBGMCU_TIM9_STOP   ((uint32_t)0x10000000)

#define DBGMCU_WWDG_STOP   ((uint32_t)0x00000200)

#define IS_DBGMCU_PERIPH(PERIPH)   ((((PERIPH) & 0x800000F8) == 0x00) && ((PERIPH) != 0x00))


Functions

void DBGMCU_Config (uint32_t DBGMCU_Periph, FunctionalState NewState)
 Configures low power mode behavior when the MCU is in Debug mode. More...

uint32_t DBGMCU_GetDEVID (void)
 Returns the device identifier. More...

uint32_t DBGMCU_GetREVID (void)
 Returns the device revision identifier. More...


Detailed Description

This file contains all the functions prototypes for the DBGMCU firmware library.

Author
MCD Application Team
Version
V3.5.0
Date
11-March-2011
Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.

© COPYRIGHT 2011 STMicroelectronics

Definition in file stm32f10x_dbgmcu.h.
