stm32f10x_dac.c File Reference

This file provides all the DAC firmware functions. More...

#include "stm32f10x_dac.h"
#include "stm32f10x_rcc.h"

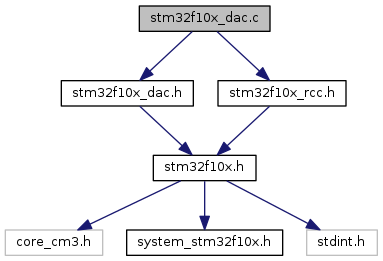

Include dependency graph for stm32f10x_dac.c:

Go to the source code of this file.

Macros
#define	CR_CLEAR_MASK   ((uint32_t)0x00000FFE)
#define	DHR12R1_OFFSET   ((uint32_t)0x00000008)
#define	DHR12R2_OFFSET   ((uint32_t)0x00000014)
#define	DHR12RD_OFFSET   ((uint32_t)0x00000020)
#define	DOR_OFFSET   ((uint32_t)0x0000002C)
#define	DUAL_SWTRIG_RESET   ((uint32_t)0xFFFFFFFC)
#define	DUAL_SWTRIG_SET   ((uint32_t)0x00000003)

Functions
void	DAC_Cmd (uint32_t DAC_Channel, FunctionalState NewState)
	Enables or disables the specified DAC channel. More...
void	DAC_DeInit (void)
	Deinitializes the DAC peripheral registers to their default reset values. More...
void	DAC_DMACmd (uint32_t DAC_Channel, FunctionalState NewState)
	Enables or disables the specified DAC channel DMA request. More...
void	DAC_DualSoftwareTriggerCmd (FunctionalState NewState)
	Enables or disables simultaneously the two DAC channels software triggers. More...
uint16_t	DAC_GetDataOutputValue (uint32_t DAC_Channel)
	Returns the last data output value of the selected DAC channel. More...
void	DAC_Init (uint32_t DAC_Channel, DAC_InitTypeDef *DAC_InitStruct)
	Initializes the DAC peripheral according to the specified parameters in the DAC_InitStruct. More...
void	DAC_SetChannel1Data (uint32_t DAC_Align, uint16_t Data)
	Set the specified data holding register value for DAC channel1. More...
void	DAC_SetChannel2Data (uint32_t DAC_Align, uint16_t Data)
	Set the specified data holding register value for DAC channel2. More...
void	DAC_SetDualChannelData (uint32_t DAC_Align, uint16_t Data2, uint16_t Data1)
	Set the specified data holding register value for dual channel DAC. More...
void	DAC_SoftwareTriggerCmd (uint32_t DAC_Channel, FunctionalState NewState)
	Enables or disables the selected DAC channel software trigger. More...
void	DAC_StructInit (DAC_InitTypeDef *DAC_InitStruct)
	Fills each DAC_InitStruct member with its default value. More...
void	DAC_WaveGenerationCmd (uint32_t DAC_Channel, uint32_t DAC_Wave, FunctionalState NewState)
	Enables or disables the selected DAC channel wave generation. More...

Detailed Description

This file provides all the DAC firmware functions.

Author

MCD Application Team

Version

V3.5.0

Date

11-March-2011

Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.

© COPYRIGHT 2011 STMicroelectronics

Definition in file stm32f10x_dac.c.
