stm32f10x_bkp.h File Reference

This file contains all the functions prototypes for the BKP firmware library. More...

#include "stm32f10x.h"
Include dependency graph for stm32f10x_bkp.h:

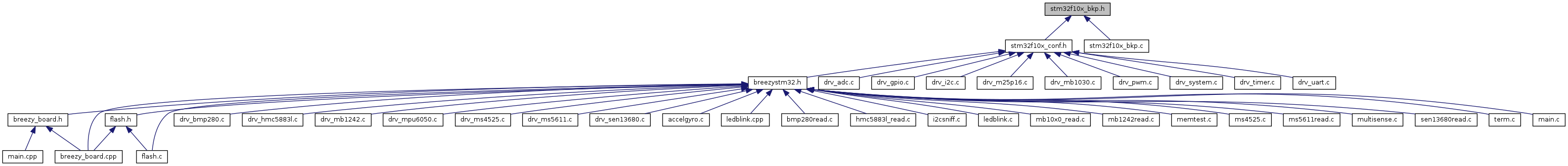

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define BKP_DR1   ((uint16_t)0x0004)

#define BKP_DR10   ((uint16_t)0x0028)

#define BKP_DR11   ((uint16_t)0x0040)

#define BKP_DR12   ((uint16_t)0x0044)

#define BKP_DR13   ((uint16_t)0x0048)

#define BKP_DR14   ((uint16_t)0x004C)

#define BKP_DR15   ((uint16_t)0x0050)

#define BKP_DR16   ((uint16_t)0x0054)

#define BKP_DR17   ((uint16_t)0x0058)

#define BKP_DR18   ((uint16_t)0x005C)

#define BKP_DR19   ((uint16_t)0x0060)

#define BKP_DR2   ((uint16_t)0x0008)

#define BKP_DR20   ((uint16_t)0x0064)

#define BKP_DR21   ((uint16_t)0x0068)

#define BKP_DR22   ((uint16_t)0x006C)

#define BKP_DR23   ((uint16_t)0x0070)

#define BKP_DR24   ((uint16_t)0x0074)

#define BKP_DR25   ((uint16_t)0x0078)

#define BKP_DR26   ((uint16_t)0x007C)

#define BKP_DR27   ((uint16_t)0x0080)

#define BKP_DR28   ((uint16_t)0x0084)

#define BKP_DR29   ((uint16_t)0x0088)

#define BKP_DR3   ((uint16_t)0x000C)

#define BKP_DR30   ((uint16_t)0x008C)

#define BKP_DR31   ((uint16_t)0x0090)

#define BKP_DR32   ((uint16_t)0x0094)

#define BKP_DR33   ((uint16_t)0x0098)

#define BKP_DR34   ((uint16_t)0x009C)

#define BKP_DR35   ((uint16_t)0x00A0)

#define BKP_DR36   ((uint16_t)0x00A4)

#define BKP_DR37   ((uint16_t)0x00A8)

#define BKP_DR38   ((uint16_t)0x00AC)

#define BKP_DR39   ((uint16_t)0x00B0)

#define BKP_DR4   ((uint16_t)0x0010)

#define BKP_DR40   ((uint16_t)0x00B4)

#define BKP_DR41   ((uint16_t)0x00B8)

#define BKP_DR42   ((uint16_t)0x00BC)

#define BKP_DR5   ((uint16_t)0x0014)

#define BKP_DR6   ((uint16_t)0x0018)

#define BKP_DR7   ((uint16_t)0x001C)

#define BKP_DR8   ((uint16_t)0x0020)

#define BKP_DR9   ((uint16_t)0x0024)

#define BKP_RTCOutputSource_Alarm   ((uint16_t)0x0100)

#define BKP_RTCOutputSource_CalibClock   ((uint16_t)0x0080)

#define BKP_RTCOutputSource_None   ((uint16_t)0x0000)

#define BKP_RTCOutputSource_Second   ((uint16_t)0x0300)

#define BKP_TamperPinLevel_High   ((uint16_t)0x0000)

#define BKP_TamperPinLevel_Low   ((uint16_t)0x0001)

#define IS_BKP_CALIBRATION_VALUE(VALUE)   ((VALUE) <= 0x7F)

#define IS_BKP_DR(DR)

#define IS_BKP_RTC_OUTPUT_SOURCE(SOURCE)

#define IS_BKP_TAMPER_PIN_LEVEL(LEVEL)


Functions

void BKP_ClearFlag (void)
 Clears Tamper Pin Event pending flag. More...

void BKP_ClearITPendingBit (void)
 Clears Tamper Pin Interrupt pending bit. More...

void BKP_DeInit (void)
 Deinitializes the BKP peripheral registers to their default reset values. More...

FlagStatus BKP_GetFlagStatus (void)
 Checks whether the Tamper Pin Event flag is set or not. More...

ITStatus BKP_GetITStatus (void)
 Checks whether the Tamper Pin Interrupt has occurred or not. More...

void BKP_ITConfig (FunctionalState NewState)
 Enables or disables the Tamper Pin Interrupt. More...

uint16_t BKP_ReadBackupRegister (uint16_t BKP_DR)
 Reads data from the specified Data Backup Register. More...

void BKP_RTCOutputConfig (uint16_t BKP_RTCOutputSource)
 Select the RTC output source to output on the Tamper pin. More...

void BKP_SetRTCCalibrationValue (uint8_t CalibrationValue)
 Sets RTC Clock Calibration value. More...

void BKP_TamperPinCmd (FunctionalState NewState)
 Enables or disables the Tamper Pin activation. More...

void BKP_TamperPinLevelConfig (uint16_t BKP_TamperPinLevel)
 Configures the Tamper Pin active level. More...

void BKP_WriteBackupRegister (uint16_t BKP_DR, uint16_t Data)
 Writes user data to the specified Data Backup Register. More...


Detailed Description

This file contains all the functions prototypes for the BKP firmware library.

Author
MCD Application Team
Version
V3.5.0
Date
11-March-2011
Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.

© COPYRIGHT 2011 STMicroelectronics

Definition in file stm32f10x_bkp.h.
