Definition of interface INode and types NodeList_t and CallbackHandleType: More...
#include <Base/GCString.h>#include <GenApi/GenApiDll.h>#include <GenApi/Types.h>#include <GenApi/IBase.h>#include <GenApi/Container.h>#include <assert.h>
Include dependency graph for INode.h:

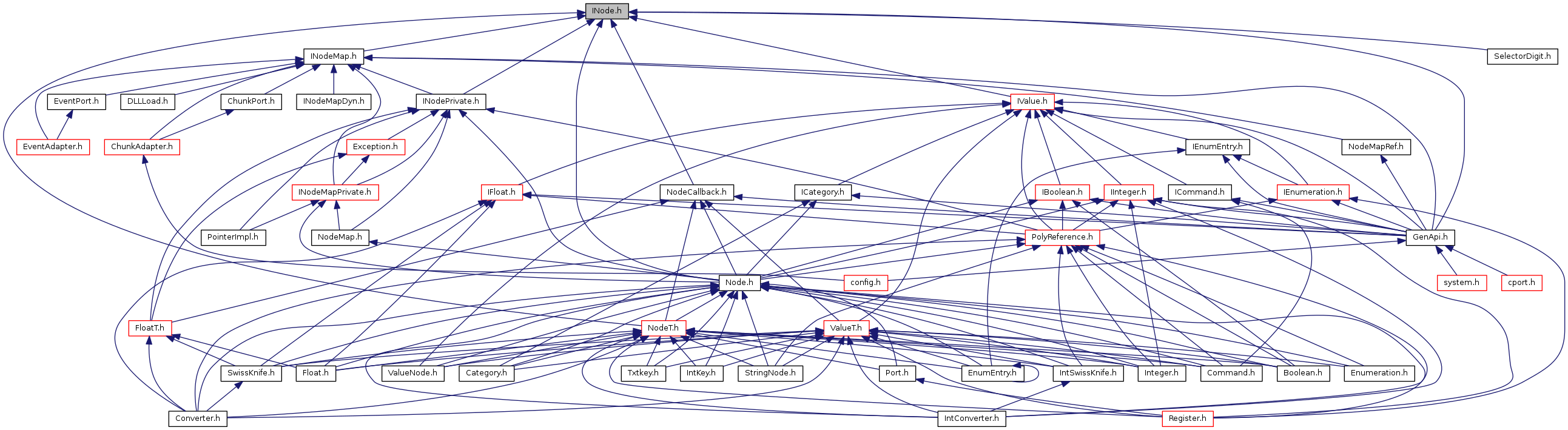

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Namespaces | |
| GENAPI_NAMESPACE | |
| Part of the generic device API. | |
Typedefs | |
| typedef intptr_t | GENAPI_NAMESPACE::CallbackHandleType |
| the callback handle for nodes More... | |
| typedef node_vector | GENAPI_NAMESPACE::NodeList_t |
| a list of node references More... | |
Functions | |
| EAccessMode | GENAPI_NAMESPACE::Combine (EAccessMode Peter, EAccessMode Paul) |
| Computes which access mode the two guards allow together. More... | |
| EVisibility | GENAPI_NAMESPACE::Combine (EVisibility Peter, EVisibility Paul) |
| Computes which visibility the two guards allow together. More... | |
| ECachingMode | GENAPI_NAMESPACE::Combine (ECachingMode Peter, ECachingMode Paul) |
| Computes which CachingMode results from a combination. More... | |
| virtual bool | GENAPI_NAMESPACE::DeregisterCallback (CallbackHandleType hCallback)=0 |
| De register change callback. More... | |
| virtual INode * | GENAPI_NAMESPACE::GetAlias () const =0 |
| Retrieves the a node which describes the same feature in a different way. More... | |
| virtual ECachingMode | GENAPI_NAMESPACE::GetCachingMode () const =0 |
| Get Caching Mode. More... | |
| virtual INode * | GENAPI_NAMESPACE::GetCastAlias () const =0 |
| Retrieves the a node which describes the same feature so that it can be casted. More... | |
| virtual void | GENAPI_NAMESPACE::GetChildren (GENAPI_NAMESPACE::NodeList_t &Children, ELinkType LinkType=ctReadingChildren) const =0 |
| Get all nodes this node directly depends on. More... | |
| virtual GENICAM_NAMESPACE::gcstring | GENAPI_NAMESPACE::GetDescription () const =0 |
| Get a long description of the node. More... | |
| virtual GENICAM_NAMESPACE::gcstring | GENAPI_NAMESPACE::GetDeviceName () const =0 |
| Get a name of the device. More... | |
| virtual GENICAM_NAMESPACE::gcstring | GENAPI_NAMESPACE::GetDisplayName () const =0 |
| Get a name string for display. More... | |
| virtual GENICAM_NAMESPACE::gcstring | GENAPI_NAMESPACE::GetDocuURL () const =0 |
| Gets a URL pointing to the documentation of that feature. More... | |
| virtual GENICAM_NAMESPACE::gcstring | GENAPI_NAMESPACE::GetEventID () const =0 |
| Get the EventId of the node. More... | |
| virtual GENAPI_NAMESPACE::ENameSpace | GENAPI_NAMESPACE::GetNameSpace () const =0 |
| Get name space. More... | |
| virtual INodeMap * | GENAPI_NAMESPACE::GetNodeMap () const =0 |
| Retrieves the central node map. More... | |
| virtual void | GENAPI_NAMESPACE::GetParents (GENAPI_NAMESPACE::NodeList_t &Parents) const =0 |
| Gets all nodes this node is directly depending on. More... | |
| virtual int64_t | GENAPI_NAMESPACE::GetPollingTime () const =0 |
| recommended polling time (for not cachable nodes) More... | |
| virtual EInterfaceType | GENAPI_NAMESPACE::GetPrincipalInterfaceType () const =0 |
| Get the type of the main interface of a node. More... | |
| virtual bool | GENAPI_NAMESPACE::GetProperty (const GENICAM_NAMESPACE::gcstring &PropertyName, GENICAM_NAMESPACE::gcstring &ValueStr, GENICAM_NAMESPACE::gcstring &AttributeStr)=0 |
| Retrieves a property plus an additional attribute by name. More... | |
| virtual void | GENAPI_NAMESPACE::GetPropertyNames (GENICAM_NAMESPACE::gcstring_vector &PropertyNames) const =0 |
| Returns a list of the names all properties set during initialization. More... | |
| virtual GENICAM_NAMESPACE::gcstring | GENAPI_NAMESPACE::GetToolTip ()=0 |
| Get tool tip. More... | |
| virtual EVisibility | GENAPI_NAMESPACE::GetVisibility () const =0 |
| Get the recommended visibility of the node. More... | |
| virtual void | GENAPI_NAMESPACE::ImposeAccessMode (EAccessMode ImposedAccessMode)=0 |
| Imposes an access mode to the natural access mode of the node. More... | |
| virtual void | GENAPI_NAMESPACE::ImposeVisibility (EVisibility ImposedVisibility)=0 |
| Imposes a visibility to the natural visibility of the node. More... | |
| virtual void | GENAPI_NAMESPACE::InvalidateNode ()=0 |
| Indicates that the node's value may have changed. More... | |
| virtual EYesNo | GENAPI_NAMESPACE::IsAccessModeCacheable () const =0 |
| True if the AccessMode can be cached. More... | |
| bool | GENAPI_NAMESPACE::IsAvailable (EAccessMode AccessMode) |
| Tests if available. More... | |
| bool | GENAPI_NAMESPACE::IsAvailable (const IBase *p) |
| Checks if a node is available. More... | |
| bool | GENAPI_NAMESPACE::IsAvailable (const IBase &r) |
| Checks if a node is available. More... | |
| virtual bool | GENAPI_NAMESPACE::IsCachable () const =0 |
| Is the node value cachable. More... | |
| bool | GENAPI_NAMESPACE::IsCacheable (ECachingMode CachingMode) |
| Tests Cacheability. More... | |
| virtual bool | GENAPI_NAMESPACE::IsDeprecated () const =0 |
| True if the node should not be used any more. More... | |
| virtual bool | GENAPI_NAMESPACE::IsFeature () const =0 |
| True if the node can be reached via category nodes from a category node named "Root". More... | |
| bool | GENAPI_NAMESPACE::IsImplemented (EAccessMode AccessMode) |
| Tests if implemented. More... | |
| bool | GENAPI_NAMESPACE::IsImplemented (const IBase *p) |
| Checks if a node is implemented. More... | |
| bool | GENAPI_NAMESPACE::IsImplemented (const IBase &r) |
| Checks if a node is implemented. More... | |
| bool | GENAPI_NAMESPACE::IsReadable (EAccessMode AccessMode) |
| Tests if readable. More... | |
| bool | GENAPI_NAMESPACE::IsReadable (const IBase *p) |
| Checks if a node is readable. More... | |
| bool | GENAPI_NAMESPACE::IsReadable (const IBase &r) |
| Checks if a node is readable. More... | |
| virtual bool | GENAPI_NAMESPACE::IsStreamable () const =0 |
| True if the node is streamable. More... | |
| bool | GENAPI_NAMESPACE::IsVisible (EVisibility Visibility, EVisibility MaxVisiblity) |
| Tests Visibility. More... | |
| bool | GENAPI_NAMESPACE::IsWritable (EAccessMode AccessMode) |
| Tests if writable. More... | |
| bool | GENAPI_NAMESPACE::IsWritable (const IBase *p) |
| Checks if a node is writable. More... | |
| bool | GENAPI_NAMESPACE::IsWritable (const IBase &r) |
| Checks if a node is writable. More... | |
| virtual CallbackHandleType | GENAPI_NAMESPACE::RegisterCallback (CNodeCallback *pCallback)=0 |
| Register change callback. More... | |
Variables | |
| interface GENAPI_DECL_ABSTRACT | GENAPI_NAMESPACE::INode |
| Interface common to all nodes. More... | |
Detailed Description
Definition of interface INode and types NodeList_t and CallbackHandleType:
Definition in file INode.h.
