helper.h File Reference
#include <asctec_hl_comm/mav_ctrl.h>
#include <tf/transform_datatypes.h>

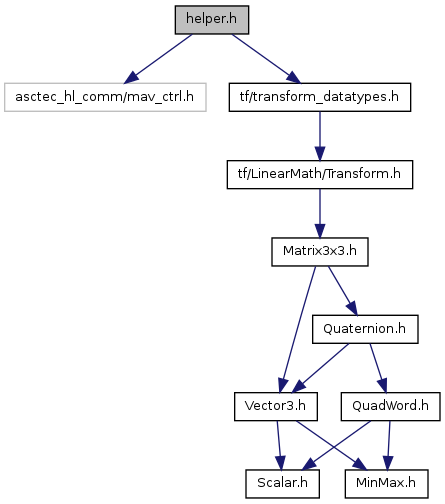

Include dependency graph for helper.h:

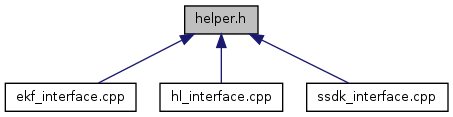

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces

namespace  helper

Functions

void helper::angle2quaternion (const double &roll, const double &pitch, const double &yaw, double *w, double *x, double *y, double *z)
 converts AscTec's attitude angles to a quaternion
template<typename T >
double helper::asctecAccToSI (const T &val)
 converts AscTec acceleration values to m/s^2
template<typename T >
double helper::asctecAttitudeToSI (const T &val)
 converts AscTec acceleration values to rad
template<typename T >
double helper::asctecOmegaToSI (const T &val)
 converts AscTec turn rates to rad/s
template<typename T >
helper::clamp (const T &min, const T &max, const T &val)
 checks if val exceeds [min ... max] and returns a clamped value if necessary
template<typename T >
helper::clamp (const T &min, const T &max, const T &val, bool *clamped)
 checks if val exceeds [min ... max] and returns a clamped value if necessary.
double helper::debug2Double (const int16_t &param)
 converts a debug value fixpoint (fp) representation needed by the SSDK running datafusion and position control to double (d)
double helper::param2Double (const uint32_t &param)
 converts a parameter from fixpoint (fp) representation needed by the SSDK running datafusion and position control to double (d)
uint32_t helper::param2Fixpoint (const double &param)
 converts a parameter from double (d) to fixpoint (fp) representation needed by the SSDK running datafusion and position control
uint16_t helper::rateToPeriod (const double &rate)
 converts a rate in Hz to an integer period in ms.
template<typename T >
void helper::setDiagonalCovariance (T &covariance_matrix, const double &covariance)
int helper::yaw2asctec (const double &yaw)
 converts the yaw angle and range. AscTec uses 0...360° * 1000, we -pi...+pi

Variables

const double helper::ASCTEC_ACC_TO_SI = 9.81e-3
 conversion from AscTec acceleration values to m/s^2
const double helper::ASCTEC_ATTITUDE_TO_SI = 0.01 * M_PI / 180.0
 conversion from AscTec attitude angles to rad
const double helper::ASCTEC_OMEGA_TO_SI = 0.015 * M_PI / 180.0
 conversion from AscTec turn rates to rad/s


asctec_hl_interface
Author(s): Markus Achtelik, Michael Achtelik, Stephan Weiss, Laurent Kneip
