io.h File Reference
#include <string>
#include <boost/fusion/sequence/intrinsic/at_key.hpp>
#include <pcl/pcl_base.h>
#include <pcl/PointIndices.h>
#include <pcl/ros/conversions.h>
#include <locale>
#include <pcl/common/impl/io.hpp>
Include dependency graph for common/include/pcl/common/io.h:

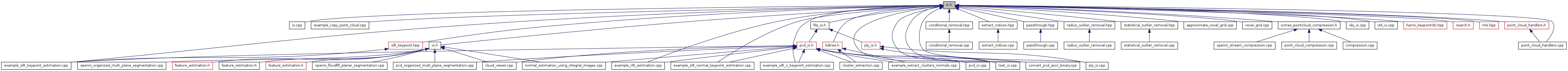

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces

namespace  pcl
namespace  pcl::io

Functions

template<typename PointIn1T , typename PointIn2T , typename PointOutT >
void pcl::concatenateFields (const pcl::PointCloud< PointIn1T > &cloud1_in, const pcl::PointCloud< PointIn2T > &cloud2_in, pcl::PointCloud< PointOutT > &cloud_out)
 Concatenate two datasets representing different fields.
PCL_EXPORTS bool pcl::concatenateFields (const sensor_msgs::PointCloud2 &cloud1_in, const sensor_msgs::PointCloud2 &cloud2_in, sensor_msgs::PointCloud2 &cloud_out)
 Concatenate two datasets representing different fields.
PCL_EXPORTS bool pcl::concatenatePointCloud (const sensor_msgs::PointCloud2 &cloud1, const sensor_msgs::PointCloud2 &cloud2, sensor_msgs::PointCloud2 &cloud_out)
 Concatenate two sensor_msgs::PointCloud2.
template<typename PointInT , typename PointOutT >
void pcl::copyPointCloud (const pcl::PointCloud< PointInT > &cloud_in, pcl::PointCloud< PointOutT > &cloud_out)
 Copy all the fields from a given point cloud into a new point cloud.
PCL_EXPORTS void pcl::copyPointCloud (const sensor_msgs::PointCloud2 &cloud_in, const std::vector< int > &indices, sensor_msgs::PointCloud2 &cloud_out)
 Extract the indices of a given point cloud as a new point cloud.
PCL_EXPORTS void pcl::copyPointCloud (const sensor_msgs::PointCloud2 &cloud_in, sensor_msgs::PointCloud2 &cloud_out)
 Copy fields and point cloud data from cloud_in to cloud_out.
template<typename PointT >
void pcl::copyPointCloud (const pcl::PointCloud< PointT > &cloud_in, const std::vector< int > &indices, pcl::PointCloud< PointT > &cloud_out)
 Extract the indices of a given point cloud as a new point cloud.
template<typename PointT >
void pcl::copyPointCloud (const pcl::PointCloud< PointT > &cloud_in, const std::vector< int, Eigen::aligned_allocator< int > > &indices, pcl::PointCloud< PointT > &cloud_out)
 Extract the indices of a given point cloud as a new point cloud.
template<typename PointInT , typename PointOutT >
void pcl::copyPointCloud (const pcl::PointCloud< PointInT > &cloud_in, const std::vector< int > &indices, pcl::PointCloud< PointOutT > &cloud_out)
 Extract the indices of a given point cloud as a new point cloud.
template<typename PointInT , typename PointOutT >
void pcl::copyPointCloud (const pcl::PointCloud< PointInT > &cloud_in, const std::vector< int, Eigen::aligned_allocator< int > > &indices, pcl::PointCloud< PointOutT > &cloud_out)
 Extract the indices of a given point cloud as a new point cloud.
template<typename PointT >
void pcl::copyPointCloud (const pcl::PointCloud< PointT > &cloud_in, const PointIndices &indices, pcl::PointCloud< PointT > &cloud_out)
 Extract the indices of a given point cloud as a new point cloud.
template<typename PointInT , typename PointOutT >
void pcl::copyPointCloud (const pcl::PointCloud< PointInT > &cloud_in, const PointIndices &indices, pcl::PointCloud< PointOutT > &cloud_out)
 Extract the indices of a given point cloud as a new point cloud.
template<typename PointT >
void pcl::copyPointCloud (const pcl::PointCloud< PointT > &cloud_in, const std::vector< pcl::PointIndices > &indices, pcl::PointCloud< PointT > &cloud_out)
 Extract the indices of a given point cloud as a new point cloud.
template<typename PointInT , typename PointOutT >
void pcl::copyPointCloud (const pcl::PointCloud< PointInT > &cloud_in, const std::vector< pcl::PointIndices > &indices, pcl::PointCloud< PointOutT > &cloud_out)
 Extract the indices of a given point cloud as a new point cloud.
PCL_EXPORTS bool pcl::getEigenAsPointCloud (Eigen::MatrixXf &in, sensor_msgs::PointCloud2 &out)
 Copy the XYZ dimensions from an Eigen MatrixXf into a sensor_msgs::PointCloud2 message.
int pcl::getFieldIndex (const sensor_msgs::PointCloud2 &cloud, const std::string &field_name)
 Get the index of a specified field (i.e., dimension/channel)
template<typename PointT >
int pcl::getFieldIndex (const pcl::PointCloud< PointT > &cloud, const std::string &field_name, std::vector< sensor_msgs::PointField > &fields)
 Get the index of a specified field (i.e., dimension/channel)
template<typename PointT >
int pcl::getFieldIndex (const std::string &field_name, std::vector< sensor_msgs::PointField > &fields)
 Get the index of a specified field (i.e., dimension/channel)
template<typename PointT >
void pcl::getFields (const pcl::PointCloud< PointT > &cloud, std::vector< sensor_msgs::PointField > &fields)
 Get the list of available fields (i.e., dimension/channel)
template<typename PointT >
void pcl::getFields (std::vector< sensor_msgs::PointField > &fields)
 Get the list of available fields (i.e., dimension/channel)
int pcl::getFieldSize (const int datatype)
 Obtains the size of a specific field data type in bytes.
template<typename PointT >
std::string pcl::getFieldsList (const pcl::PointCloud< PointT > &cloud)
 Get the list of all fields available in a given cloud.
std::string pcl::getFieldsList (const sensor_msgs::PointCloud2 &cloud)
 Get the available point cloud fields as a space separated string.
PCL_EXPORTS void pcl::getFieldsSizes (const std::vector< sensor_msgs::PointField > &fields, std::vector< int > &field_sizes)
 Obtain a vector with the sizes of all valid fields (e.g., not "_")
int pcl::getFieldType (const int size, char type)
 Obtains the type of the PointField from a specific size and type.
char pcl::getFieldType (const int type)
 Obtains the type of the PointField from a specific PointField as a char.
PCL_EXPORTS bool pcl::getPointCloudAsEigen (const sensor_msgs::PointCloud2 &in, Eigen::MatrixXf &out)
 Copy the XYZ dimensions of a sensor_msgs::PointCloud2 into Eigen format.
template<std::size_t N>
void pcl::io::swapByte (char *bytes)
 swap bytes order of a char array of length N
template<typename T >
void pcl::io::swapByte (T &value)
 swaps byte of an arbitrary type T casting it to char*
template<>
void pcl::io::swapByte< 1 > (char *bytes)
 specialization of swapByte for dimension 1
template<>
void pcl::io::swapByte< 2 > (char *bytes)
 specialization of swapByte for dimension 2
template<>
void pcl::io::swapByte< 4 > (char *bytes)
 specialization of swapByte for dimension 4
template<>
void pcl::io::swapByte< 8 > (char *bytes)
 specialization of swapByte for dimension 8
