AD5592R

Prerequisites:

Raspberry Pi 4B as the remote host with Kuiper Linux Image installed.
AD5592R device tree overlay loaded on the RPi.
PMD-RPI-INTZ for HW connections.
EVAL-AD5592R-PMDZ as the IIO device.
A client running ROS2 with the adi_iio package installed.
A network connection between the RPi and the client.

The EVAL-AD5592R-PMDZ is connected to the RPi via the PMD-RPI-INTZ board using the SPI Pmod #1 connector. The AD5592R device tree overlay uses SPI CS0 to communicate with the device.

Warning

The adi_iio_node executable must be running on the client side when running the examples.

Examples:

Configuring AD5592R Channel Attributes using `AttrWriteString` Service

Configuring a Single Channel Attribute via CLI

You can set a specific attribute of an IIO device channel by calling the /adi_iio_node/AttrWriteString service. For instance, to set the scale for output_voltage0 of the ad5592r device, you would use the following command:

ros2 service call /adi_iio_node/AttrWriteString adi_iio/srv/AttrWriteString "{
    attr_path: 'ad5592r/output_voltage0/scale',
    value: '0.6103515629'
}"

In this command:

/adi_iio_node/AttrWriteString is the name of the service.
adi_iio/srv/AttrWriteString is the type of the service.
attr_path: 'ad5592r/output_voltage0/scale' specifies the IIO device (ad5592r), the channel (output_voltage0), and the attribute (scale) to be modified.
value: '0.6103515629' is the new value for the specified attribute.

This approach is useful for quick, individual changes. For initializing a device with multiple settings or for more complex setups, using a launch file is more efficient.

Configuring Multiple Channel Attributes via Launch File

The ad5592r_config.launch.py launch file demonstrates how to set the scale and raw attributes for various input and output voltage channels of the AD5592R device. This is useful for initializing the device to a known state.

The launch file executes a series of ros2 service call commands to the /adi_iio_node/AttrWriteString service. For each targeted channel, it sets: * <channel_name>/scale: Defines the scaling factor for the channel. * <channel_name>/raw: Sets the raw ADC/DAC value for the channel.

For output channels, both scale and raw attributes are set. For input channels, typically only the scale attribute is configured via this launch file.

Tip

To run this launch file, execute the following command:

ros2 launch ad5592r ad5592r_config.launch.py

This will configure the following channels on the ad5592r device:

output_voltage0: sets scale and raw attributes.
input_voltage1: sets scale attribute.
input_voltage2: sets scale attribute.
output_voltage2: sets scale and raw attributes.
input_voltage3: sets scale attribute.
output_voltage3: sets scale and raw attributes.
input_voltage4: sets scale attribute.

You can inspect the ad5592r_config.launch.py file to see the how the service calls are structured.

Enabling AD5592R Channel Attribute Topics

The adi_iio_node can publish the values of IIO device attributes to ROS 2 topics. This allows other nodes in the ROS 2 ecosystem to subscribe to and react to changes in these attribute values.

Enabling a Single Attribute Topic via CLI

To enable publishing for a specific attribute, you can call the /adi_iio_node/AttrEnableTopic service. For example, to start publishing the raw value of output_voltage0 for the ad5592r device, you would use:

ros2 service call /adi_iio_node/AttrEnableTopic adi_iio/srv/AttrEnableTopic "{
    attr_path: 'ad5592r/output_voltage0/raw',
    loop_rate: 1
}"

This command instructs the adi_iio_node to create a publisher for the specified attribute. The topic name will be automatically generated based on the attr_path (e.g., /ad5592r/output_voltage0/raw). The node will then periodically read the attribute and publish its value.

This method is suitable for enabling topics one by one. For enabling multiple topics at once, a launch file is more convenient.

Enabling Multiple AD5592R Attribute Topics with a Launch File

The ad5592r_topics.launch.py launch file provides a way to enable topic publishing for several raw attributes of the AD5592R device simultaneously.

This launch file executes a series of ros2 service call commands to the /adi_iio_node/AttrEnableTopic service for various input and output channel raw attributes.

Tip

To run this launch file, execute the following command:

ros2 launch ad5592r ad5592r_topics.launch.py

By default, this launch file sets the loop_rate for publishing to 1 Hz. You can change the loop_rate variable in the launch file.

This will enable topics for the following raw attributes on the ad5592r device:

output_voltage0/raw
input_voltage1/raw
input_voltage2/raw
output_voltage2/raw
input_voltage3/raw
output_voltage3/raw
input_voltage4/raw

After running the launch file, you can list the available topics using ros2 topic list:

/ad5592r/input_voltage1/raw/read
/ad5592r/input_voltage1/raw/write
/ad5592r/input_voltage2/raw/read
/ad5592r/input_voltage2/raw/write
/ad5592r/input_voltage3/raw/read
/ad5592r/input_voltage3/raw/write
/ad5592r/input_voltage4/raw/read
/ad5592r/input_voltage4/raw/write
/ad5592r/output_voltage0/raw/read
/ad5592r/output_voltage0/raw/write
/ad5592r/output_voltage2/raw/read
/ad5592r/output_voltage2/raw/write
/ad5592r/output_voltage3/raw/read
/ad5592r/output_voltage3/raw/write

Since we are dealing with input channels, the /read topics can be used to read the current value of the attribute.

ros2 topic echo /ad5592r/input_voltage1/raw/read

You can inspect the ad5592r_topics.launch.py to see how the service calls are made and how the loop_rate variable is used.

Transforming Raw Data to Voltage Readings

Once you have topics publishing raw attribute data, you might want to transform this data into more meaningful units, such as Volts. The ROS 2 ecosystem provides utility nodes like topic_tools transform that can subscribe to a topic, apply a transformation to the messages, and republish them on a new topic.

The ad5592r_transforms.launch.py launch file demonstrates this by converting the raw ADC readings from input_voltage2 and input_voltage3 into voltage values.

This launch file uses topic_tools transform to:

Subscribe to the /ad5592r/input_voltage<X>/raw/read topics (where X is 2 or 3).
Apply a formula: volts = (raw_value * scale) / 1000. In this case, the scale is hardcoded to 0.610351562, which is a typical scale factor for the AD5592R when configured for a 0-2.5V range with its internal reference (Vref/4096 = 2.5V/4096). The division by 1000 converts mV to V.
Publish the result as a std_msgs/Float64 message on new topics: /ad5592r/input_voltage<X>/volts.

Tip

To use this, you would typically first enable the raw data topics using ad5592r_topics.launch.py as described previously. Then, in a new terminal, run the transforms launch file:

ros2 launch ad5592r ad5592r_transforms.launch.py

This will start the transformation nodes. You can then inspect the new topics:

ros2 topic echo /ad5592r/input_voltage2/volts

# Which will output something like this:
data: 0.000610351562
---
data: 0.000610351562
---
data: 0.000610351562

You can inspect the ad5592r_transforms.launch.py file to see the exact commands and transformation expressions used.

Bringing Up the Full AD5592R Example System

To simplify the process of configuring the AD5592R, enabling its data topics, and setting up data transformations, a top-level bringup launch file is provided: ad5592r_bringup.launch.py. This file orchestrates the execution of the previously discussed launch files:

Tip

To launch the complete AD5592R example system, execute the following command:

ros2 launch ad5592r ad5592r_bringup.launch.py

Note

The transform launch file is not included in the bringup process because it depends on the topics being active. If the topics are not available quickly enough, the transform launch file might fail. It is recommended to run the transform launch file separately after ensuring that the topics are active.

Creating Custom ROS 2 Nodes for IIO Device Interaction

Beyond using command-line tools and launch files, you can create dedicated ROS2 nodes in Python (or C++) to implement more complex logic involving IIO devices. These custom nodes can act as clients to the services provided by adi_iio_node to read, write, or stream IIO attributes and buffer data.

This approach allows for tailored applications, such as:

Implementing control loops based on sensor readings.
Performing advanced data processing and fusion.
Integrating IIO device data with other ROS 2 capabilities (e.g., navigation, manipulation).

The following examples demonstrates how to create a custom ROS2 node for different applications:

Temperature Indicator Node

The temperature_indicator.py script provides an example of a ROS 2 node that reads the AD5592R’s internal temperature sensor attributes, calculates the temperature in Celsius, and publishes it on a ROS 2 topic.

Purpose: The TemperatureIndicator node demonstrates how to:

Create service clients to interact with adi_iio_node.
Read IIO attributes (scale, offset, raw) for the temperature
sensor channel (temp) of the ad5592r device.
Enable topic publishing for specific IIO attributes (raw and
offset) via service calls.
Subscribe to these newly enabled topics to get periodic updates.
Perform calculations using the retrieved attribute values.
Publish the processed data (temperature in Celsius with running mean and
variance) on a standard sensor_msgs/msg/Temperature topic.

Services Showcased: This node primarily utilizes the following services from adi_iio_node:

adi_iio/srv/AttrReadString: To read the scale attribute of the temperature sensor once at startup.
adi_iio/srv/AttrEnableTopic: To request adi_iio_node to start publishing the raw and offset attributes of the temperature sensor to dedicated topics.

How to Run and Inspect:

Run the Node:

You can run the node using ros2 run:
ros2 run ad5592r temperature_indicator
You can also pass parameters, for example, to change the update rate:
ros2 run ad5592r temperature_indicator --ros-args -p timer_period:=0.5

Inspect its Behavior:

Node List: Check if the node is running:
ros2 node list
Topic List: See the topics it interacts with:
ros2 topic list
# You should see /temperature, /ad5592r/temp/raw/read, /ad5592r/temp/offset/read, etc.
Echo Temperature Data: View the published temperature:
ros2 topic echo /temperature

# Should return:
# header:
# stamp:
#    sec: 1747036204
#    nanosec: 922183048
# frame_id: ''
# temperature: 26.089715531578957
# variance: 0.12639853924376374
Node Info: Get detailed information about its subscriptions, publications, and services:
ros2 node info /temperature_indicator

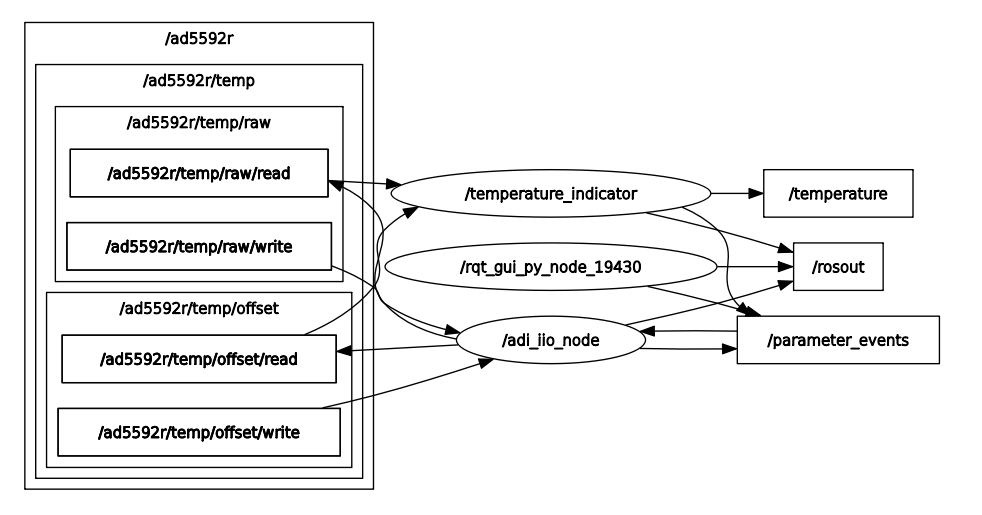

Communication Flow:

Initialization:
- The node declares parameters for timer period, the adi_iio_node
  service provider name, and QoS settings.
- It creates service clients for AttrReadString and AttrEnableTopic.
- It waits for these services to become available.
Attribute Reading & Topic Enabling:
- It makes an asynchronous service call to AttrReadString to fetch
  the ad5592r/temp/scale value.
- It makes asynchronous service calls to AttrEnableTopic for
  ad5592r/temp/raw and ad5592r/temp/offset. This tells adi_iio_node to start publishing these values.
Data Subscription:
- The node subscribes to ad5592r/temp/raw/read and
  ad5592r/temp/offset/read topics (which are of type std_msgs/msg/String as enabled by AttrEnableTopic).
Periodic Processing & Publishing:
- A timer periodically triggers a callback.
- Inside the timer callback, if raw and offset values have been received from the subscriptions, the node:
  Computes the temperature using the formula: temp_degC = ((raw + offset) * scale) / 1000.

  Updates a running mean and variance of the temperature.

  Publishes a sensor_msgs/msg/Temperature message containing the current mean temperature and variance to the /temperature topic.

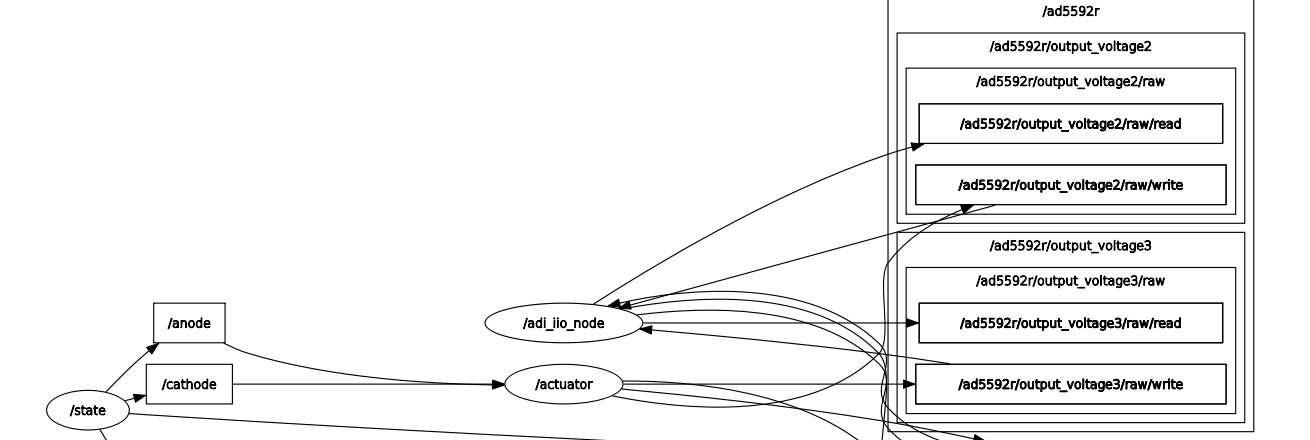

Actuator and State Machine Example: Controlling Output Channels

This example demonstrates a more complex interaction involving two custom ROS 2 nodes:

actuator.py: A node that subscribes to voltage commands on ROS 2 topics and translates them into raw values to control output channels of the AD5592R (e.g., to drive an LED).
state_machine.py: A node that generates various voltage signal patterns and publishes them to the topics the actuator.py node listens to.

Together, these nodes showcase how one can create a system where high-level commands (generated by the state machine) are translated into low-level hardware control (by the actuator) via the adi_iio_node.

1. Actuator Node

The actuator.py script acts as an interface to control specific output channels of the AD5592R.

Purpose: The Actuator node demonstrates how to:

Declare parameters for IIO attribute paths (e.g., for anode and cathode raw and scale attributes) and topic names.
Create service clients for AttrReadString, AttrEnableTopic, and AttrDisableTopic.
Use AttrReadString to fetch the scale values for the configured output channels. This is crucial for converting desired voltage levels into raw DAC values.
Use AttrEnableTopic to instruct adi_iio_node to create <attr_path>/write topics. This allows the Actuator to send raw values to the AD5592R by publishing to these specific topics.
Subscribe to user-defined topics (e.g., /anode, /cathode) that carry desired voltage levels (as std_msgs/msg/Float64).
In the subscription callback, convert the received voltage (e.g., 0-2.5V) into a raw integer value (e.g., 0-4095) using the previously read scale.
Publish the calculated raw value as a std_msgs/msg/String to the corresponding .../raw/write topic (e.g., /ad5592r/output_voltage2/raw/write).
Use AttrDisableTopic during node shutdown to clean up the topics enabled in adi_iio_node.

Services & Topics Utilized by Actuator:

Service Clients:
- adi_iio/srv/AttrReadString: To get scale values for output_voltageX/scale.
- adi_iio/srv/AttrEnableTopic: To enable adi_iio_node to expose output_voltageX/raw/write topics.
- adi_iio/srv/AttrDisableTopic: To disable the topics upon shutdown.
Subscribers:
- topics like /anode and /cathode (configurable via parameters, type std_msgs/msg/Float64) for receiving voltage commands.
Publishers:
- To topics like /ad5592r/output_voltage2/raw/write and /ad5592r/output_voltage3/raw/write (configurable via parameters, type std_msgs/msg/String) to send raw values to adi_iio_node.

2. State Machine Node

The state_machine.py script generates time-varying voltage signals.

Purpose: The StateMachine node demonstrates how to:

Define a sequence of states (e.g., “ANODE_RISING”, “ANODE_FALLING”, “CATHODE_RISING”, “CATHODE_FALLING”).
Generate a signal (e.g., a linear ramp from 0V to 2.5V).
In each state, publish this signal to a specific topic (/anode or /cathode, configurable via parameters).

Topics Utilized by StateMachine:

Publishers: To topics like /anode and /cathode (configurable via parameters, type std_msgs/msg/Float64) to send generated voltage signals.
