vl53l1x: vl53l1_tuning_parm_defaults.h File Reference

Define defaults for tuning parm list. More...

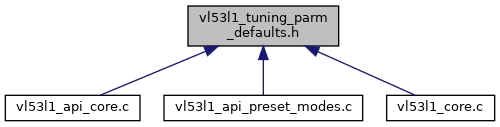

This graph shows which files directly or indirectly include this file:

Macros
#define	VL53L1_TUNINGPARM_CONSISTENCY_LITE_PHASE_TOLERANCE_DEFAULT ((uint8_t) 2)

#define	VL53L1_TUNINGPARM_INITIAL_PHASE_REF_LITE_LONG_RANGE_DEFAULT ((uint8_t) 14)

#define	VL53L1_TUNINGPARM_INITIAL_PHASE_REF_LITE_MED_RANGE_DEFAULT ((uint8_t) 10)

#define	VL53L1_TUNINGPARM_INITIAL_PHASE_REF_LITE_SHORT_RANGE_DEFAULT ((uint8_t) 6)

#define	VL53L1_TUNINGPARM_INITIAL_PHASE_RTN_LITE_LONG_RANGE_DEFAULT ((uint8_t) 14)

#define	VL53L1_TUNINGPARM_INITIAL_PHASE_RTN_LITE_MED_RANGE_DEFAULT ((uint8_t) 10)

#define	VL53L1_TUNINGPARM_INITIAL_PHASE_RTN_LITE_SHORT_RANGE_DEFAULT ((uint8_t) 6)

#define	VL53L1_TUNINGPARM_KEY_TABLE_VERSION_DEFAULT ((uint16_t) 32769)

#define	VL53L1_TUNINGPARM_LITE_CAL_REPEAT_RATE_DEFAULT ((uint16_t) 0)

#define	VL53L1_TUNINGPARM_LITE_DSS_CONFIG_TARGET_TOTAL_RATE_MCPS_DEFAULT ((uint16_t) 2560)

#define	VL53L1_TUNINGPARM_LITE_FIRST_ORDER_SELECT_DEFAULT ((uint8_t) 0)

#define	VL53L1_TUNINGPARM_LITE_LONG_MIN_COUNT_RATE_RTN_MCPS_DEFAULT ((uint16_t) 192)

#define	VL53L1_TUNINGPARM_LITE_LONG_SIGMA_THRESH_MM_DEFAULT ((uint16_t) 360)

#define	VL53L1_TUNINGPARM_LITE_MED_MIN_COUNT_RATE_RTN_MCPS_DEFAULT ((uint16_t) 192)

#define	VL53L1_TUNINGPARM_LITE_MED_SIGMA_THRESH_MM_DEFAULT ((uint16_t) 360)

#define	VL53L1_TUNINGPARM_LITE_MIN_CLIP_MM_DEFAULT ((uint8_t) 0)

#define	VL53L1_TUNINGPARM_LITE_MM_CONFIG_TIMEOUT_US_DEFAULT ((uint32_t) 2000)

#define	VL53L1_TUNINGPARM_LITE_PHASECAL_CONFIG_TIMEOUT_US_DEFAULT ((uint32_t) 1000)

#define	VL53L1_TUNINGPARM_LITE_QUANTIFIER_DEFAULT ((uint8_t) 2)

#define	VL53L1_TUNINGPARM_LITE_RANGE_CONFIG_TIMEOUT_US_DEFAULT ((uint32_t) 63000)

#define	VL53L1_TUNINGPARM_LITE_RANGING_GAIN_FACTOR_DEFAULT ((uint16_t) 2011)

#define	VL53L1_TUNINGPARM_LITE_RIT_MULT_DEFAULT ((uint8_t) 64)

#define	VL53L1_TUNINGPARM_LITE_SEED_CONFIG_DEFAULT ((uint8_t) 2)

#define	VL53L1_TUNINGPARM_LITE_SHORT_MIN_COUNT_RATE_RTN_MCPS_DEFAULT ((uint16_t) 192)

#define	VL53L1_TUNINGPARM_LITE_SHORT_SIGMA_THRESH_MM_DEFAULT ((uint16_t) 360)

#define	VL53L1_TUNINGPARM_LITE_SIGMA_EST_AMB_WIDTH_NS_DEFAULT ((uint8_t) 16)

#define	VL53L1_TUNINGPARM_LITE_SIGMA_EST_PULSE_WIDTH_DEFAULT ((uint8_t) 8)

#define	VL53L1_TUNINGPARM_LITE_SIGMA_REF_MM_DEFAULT ((uint8_t) 1)

#define	VL53L1_TUNINGPARM_LITE_XTALK_MARGIN_KCPS_DEFAULT ((int16_t) 0)

#define	VL53L1_TUNINGPARM_LLD_VERSION_DEFAULT ((uint16_t) 32833)

#define	VL53L1_TUNINGPARM_LOWPOWERAUTO_MM_CONFIG_TIMEOUT_US_DEFAULT ((uint32_t) 1)

#define	VL53L1_TUNINGPARM_LOWPOWERAUTO_RANGE_CONFIG_TIMEOUT_US_DEFAULT ((uint32_t) 8000)

#define	VL53L1_TUNINGPARM_LOWPOWERAUTO_VHV_LOOP_BOUND_DEFAULT ((uint8_t) 3)

#define	VL53L1_TUNINGPARM_OFFSET_CAL_DSS_RATE_MCPS_DEFAULT ((uint16_t) 2560)

#define	VL53L1_TUNINGPARM_OFFSET_CAL_MM1_SAMPLES_DEFAULT ((uint8_t) 40)

#define	VL53L1_TUNINGPARM_OFFSET_CAL_MM2_SAMPLES_DEFAULT ((uint8_t) 9)

#define	VL53L1_TUNINGPARM_OFFSET_CAL_MM_TIMEOUT_US_DEFAULT ((uint32_t) 13000)

#define	VL53L1_TUNINGPARM_OFFSET_CAL_PHASECAL_TIMEOUT_US_DEFAULT ((uint32_t) 1000)

#define	VL53L1_TUNINGPARM_OFFSET_CAL_PRE_SAMPLES_DEFAULT ((uint8_t) 8)

#define	VL53L1_TUNINGPARM_OFFSET_CAL_RANGE_TIMEOUT_US_DEFAULT ((uint32_t) 13000)

#define	VL53L1_TUNINGPARM_PHASECAL_TARGET_DEFAULT ((uint8_t) 33)

#define	VL53L1_TUNINGPARM_REFSPADCHAR_DEVICE_TEST_MODE_DEFAULT ((uint8_t) 8)

#define	VL53L1_TUNINGPARM_REFSPADCHAR_MAX_COUNTRATE_LIMIT_MCPS_DEFAULT ((uint16_t) 5120)

#define	VL53L1_TUNINGPARM_REFSPADCHAR_MIN_COUNTRATE_LIMIT_MCPS_DEFAULT ((uint16_t) 1280)

#define	VL53L1_TUNINGPARM_REFSPADCHAR_PHASECAL_TIMEOUT_US_DEFAULT ((uint32_t) 1000)

#define	VL53L1_TUNINGPARM_REFSPADCHAR_TARGET_COUNT_RATE_MCPS_DEFAULT ((uint16_t) 2560)

#define	VL53L1_TUNINGPARM_REFSPADCHAR_VCSEL_PERIOD_DEFAULT ((uint8_t) 11)

#define	VL53L1_TUNINGPARM_SPADMAP_RATE_LIMIT_MCPS_DEFAULT ((uint16_t) 12)

#define	VL53L1_TUNINGPARM_SPADMAP_VCSEL_PERIOD_DEFAULT ((uint8_t) 18)

#define	VL53L1_TUNINGPARM_SPADMAP_VCSEL_START_DEFAULT ((uint8_t) 15)

#define	VL53L1_TUNINGPARM_TIMED_DSS_CONFIG_TARGET_TOTAL_RATE_MCPS_DEFAULT ((uint16_t) 2560)

#define	VL53L1_TUNINGPARM_TIMED_MM_CONFIG_TIMEOUT_US_DEFAULT ((uint32_t) 2000)

#define	VL53L1_TUNINGPARM_TIMED_PHASECAL_CONFIG_TIMEOUT_US_DEFAULT ((uint32_t) 1000)

#define	VL53L1_TUNINGPARM_TIMED_RANGE_CONFIG_TIMEOUT_US_DEFAULT ((uint32_t) 13000)

#define	VL53L1_TUNINGPARM_TIMED_SEED_CONFIG_DEFAULT ((uint8_t) 1)

#define	VL53L1_TUNINGPARM_VERSION_DEFAULT ((uint16_t) 32771)

#define	VL53L1_TUNINGPARM_VHV_LOOPBOUND_DEFAULT ((uint8_t) 32)

Detailed Description

Define defaults for tuning parm list.

Ensures coherence of internal defaults to tuning table
Allows reduction of tuning parm list to only changes from the standard settings defined below

Definition in file vl53l1_tuning_parm_defaults.h.
