uavcan_communicator: adc_11xx.h File Reference

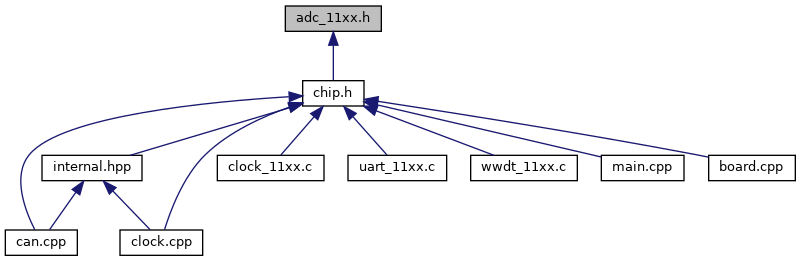

This graph shows which files directly or indirectly include this file:

Classes
struct	ADC_CLOCK_SETUP_T

struct	LPC_ADC_T
	10 or 12-bit ADC register block structure More...

Macros
#define	ADC_CR_BITACC(n) ((((n) & 0x7) << 17))

#define	ADC_CR_BURST ((1UL << 16))

#define	ADC_CR_CH_SEL(n) ((1UL << (n)))

#define	ADC_CR_CLKDIV(n) ((((n) & 0xFF) << 8))

#define	ADC_CR_EDGE ((1UL << 27))

#define	ADC_CR_PDN ((1UL << 21))

#define	ADC_CR_START_ADCTRIG0 ((4UL << 24))

#define	ADC_CR_START_ADCTRIG1 ((5UL << 24))

#define	ADC_CR_START_CTOUT15 ((2UL << 24))

#define	ADC_CR_START_CTOUT8 ((3UL << 24))

#define	ADC_CR_START_MASK ((7UL << 24))

#define	ADC_CR_START_MCOA2 ((6UL << 24))

#define	ADC_CR_START_MODE_SEL(SEL) ((SEL << 24))

#define	ADC_CR_START_NOW ((1UL << 24))

#define	ADC_DR_DONE(n) (((n) >> 31))

#define	ADC_DR_OVERRUN(n) ((((n) >> 30) & (1UL)))

#define	ADC_DR_RESULT(n) ((((n) >> 6) & 0x3FF))
	ADC register support bitfields and mask. More...

#define	ADC_MAX_SAMPLE_RATE 400000

#define	ADC_SAMPLE_RATE_CONFIG_MASK (ADC_CR_CLKDIV(0xFF) \| ADC_CR_BITACC(0x07))

Typedefs
typedef enum CHIP_ADC_CHANNEL	ADC_CHANNEL_T

typedef enum CHIP_ADC_EDGE_CFG	ADC_EDGE_CFG_T

typedef enum CHIP_ADC_RESOLUTION	ADC_RESOLUTION_T

typedef enum CHIP_ADC_START_MODE	ADC_START_MODE_T

typedef enum IP_ADC_STATUS	ADC_STATUS_T
	ADC status register used for IP drivers. More...

Enumerations
enum	CHIP_ADC_CHANNEL { ADC_CH0 = 0, ADC_CH1, ADC_CH2, ADC_CH3, ADC_CH4, ADC_CH5, ADC_CH6, ADC_CH7 }

enum	CHIP_ADC_EDGE_CFG { ADC_TRIGGERMODE_RISING = 0, ADC_TRIGGERMODE_FALLING }

enum	CHIP_ADC_RESOLUTION { ADC_10BITS = 0, ADC_9BITS, ADC_8BITS, ADC_7BITS, ADC_6BITS, ADC_5BITS, ADC_4BITS, ADC_3BITS }

enum	CHIP_ADC_START_MODE { ADC_NO_START = 0, ADC_START_NOW, ADC_START_ON_CTOUT15, ADC_START_ON_CTOUT8, ADC_START_ON_ADCTRIG0, ADC_START_ON_ADCTRIG1, ADC_START_ON_MCOA2 }

enum	IP_ADC_STATUS { ADC_DR_DONE_STAT, ADC_DR_OVERRUN_STAT, ADC_DR_ADINT_STAT }
	ADC status register used for IP drivers. More...

Functions
void	Chip_ADC_DeInit (LPC_ADC_T *pADC)
	Shutdown ADC. More...

void	Chip_ADC_EnableChannel (LPC_ADC_T *pADC, ADC_CHANNEL_T channel, FunctionalState NewState)
	Enable or disable the ADC channel on ADC peripheral. More...

void	Chip_ADC_Init (LPC_ADC_T pADC, ADC_CLOCK_SETUP_T ADCSetup)
	Initialize the ADC peripheral and the ADC setup structure to default value. More...

void	Chip_ADC_Int_SetChannelCmd (LPC_ADC_T *pADC, uint8_t channel, FunctionalState NewState)
	Enable/Disable interrupt for ADC channel. More...

STATIC INLINE void	Chip_ADC_Int_SetGlobalCmd (LPC_ADC_T *pADC, FunctionalState NewState)
	Enable/Disable global interrupt for ADC channel. More...

Status	Chip_ADC_ReadByte (LPC_ADC_T pADC, ADC_CHANNEL_T channel, uint8_t data)
	Read the ADC value and convert it to 8bits value. More...

FlagStatus	Chip_ADC_ReadStatus (LPC_ADC_T *pADC, uint8_t channel, uint32_t StatusType)
	Read the ADC channel status. More...

Status	Chip_ADC_ReadValue (LPC_ADC_T pADC, uint8_t channel, uint16_t data)
	Read the ADC value from a channel. More...

void	Chip_ADC_SetBurstCmd (LPC_ADC_T *pADC, FunctionalState NewState)
	Enable burst mode. More...

void	Chip_ADC_SetResolution (LPC_ADC_T pADC, ADC_CLOCK_SETUP_T ADCSetup, ADC_RESOLUTION_T resolution)
	Set the ADC accuracy bits. More...

void	Chip_ADC_SetSampleRate (LPC_ADC_T pADC, ADC_CLOCK_SETUP_T ADCSetup, uint32_t rate)
	Set the ADC Sample rate. More...

void	Chip_ADC_SetStartMode (LPC_ADC_T *pADC, ADC_START_MODE_T mode, ADC_EDGE_CFG_T EdgeOption)
	Select the mode starting the AD conversion. More...
