stm32h7xx_hal_dfsdm.h File Reference

Header file of DFSDM HAL module. More...

#include "stm32h7xx_hal_def.h"

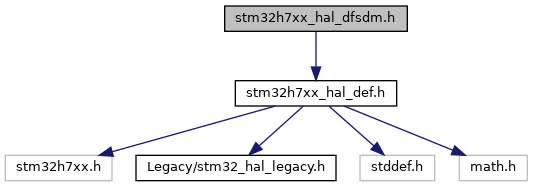

Include dependency graph for stm32h7xx_hal_dfsdm.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  DFSDM_Channel_AwdTypeDef
 DFSDM channel analog watchdog structure definition. More...

struct  DFSDM_Channel_HandleTypeDef
 DFSDM channel handle structure definition. More...

struct  DFSDM_Channel_InitTypeDef
 DFSDM channel init structure definition. More...

struct  DFSDM_Channel_InputTypeDef
 DFSDM channel input structure definition. More...

struct  DFSDM_Channel_OutputClockTypeDef
 DFSDM channel output clock structure definition. More...

struct  DFSDM_Channel_SerialInterfaceTypeDef
 DFSDM channel serial interface structure definition. More...

struct  DFSDM_Filter_AwdParamTypeDef
 DFSDM filter analog watchdog parameters structure definition. More...

struct  DFSDM_Filter_FilterParamTypeDef
 DFSDM filter parameters structure definition. More...

struct  DFSDM_Filter_HandleTypeDef
 DFSDM filter handle structure definition. More...

struct  DFSDM_Filter_InitTypeDef
 DFSDM filter init structure definition. More...

struct  DFSDM_Filter_InjectedParamTypeDef
 DFSDM filter injected conversion parameters structure definition. More...

struct  DFSDM_Filter_RegularParamTypeDef
 DFSDM filter regular conversion parameters structure definition. More...


Macros

#define __HAL_DFSDM_CHANNEL_RESET_HANDLE_STATE(__HANDLE__)   ((__HANDLE__)->State = HAL_DFSDM_CHANNEL_STATE_RESET)
 Reset DFSDM channel handle state. More...

#define __HAL_DFSDM_FILTER_RESET_HANDLE_STATE(__HANDLE__)   ((__HANDLE__)->State = HAL_DFSDM_FILTER_STATE_RESET)
 Reset DFSDM filter handle state. More...

#define DFSDM_AWD_HIGH_THRESHOLD   0x00000000U

#define DFSDM_AWD_LOW_THRESHOLD   0x00000001U

#define DFSDM_BREAK_SIGNAL_0   0x00000001U

#define DFSDM_BREAK_SIGNAL_1   0x00000002U

#define DFSDM_BREAK_SIGNAL_2   0x00000004U

#define DFSDM_BREAK_SIGNAL_3   0x00000008U

#define DFSDM_CHANNEL_0   0x00000001U

#define DFSDM_CHANNEL_1   0x00010002U

#define DFSDM_CHANNEL_2   0x00020004U

#define DFSDM_CHANNEL_3   0x00030008U

#define DFSDM_CHANNEL_4   0x00040010U

#define DFSDM_CHANNEL_5   0x00050020U

#define DFSDM_CHANNEL_6   0x00060040U

#define DFSDM_CHANNEL_7   0x00070080U

#define DFSDM_CHANNEL_ADC_OUTPUT   DFSDM_CHCFGR1_DATMPX_0

#define DFSDM_CHANNEL_DUAL_MODE   DFSDM_CHCFGR1_DATPACK_1

#define DFSDM_CHANNEL_EXTERNAL_INPUTS   0x00000000U

#define DFSDM_CHANNEL_FASTSINC_ORDER   0x00000000U

#define DFSDM_CHANNEL_FOLLOWING_CHANNEL_PINS   DFSDM_CHCFGR1_CHINSEL

#define DFSDM_CHANNEL_INTERLEAVED_MODE   DFSDM_CHCFGR1_DATPACK_0

#define DFSDM_CHANNEL_INTERNAL_REGISTER   DFSDM_CHCFGR1_DATMPX_1

#define DFSDM_CHANNEL_MANCHESTER_FALLING   DFSDM_CHCFGR1_SITP

#define DFSDM_CHANNEL_MANCHESTER_RISING   DFSDM_CHCFGR1_SITP_1

#define DFSDM_CHANNEL_OUTPUT_CLOCK_AUDIO   DFSDM_CHCFGR1_CKOUTSRC

#define DFSDM_CHANNEL_OUTPUT_CLOCK_SYSTEM   0x00000000U

#define DFSDM_CHANNEL_SAME_CHANNEL_PINS   0x00000000U

#define DFSDM_CHANNEL_SINC1_ORDER   DFSDM_CHAWSCDR_AWFORD_0

#define DFSDM_CHANNEL_SINC2_ORDER   DFSDM_CHAWSCDR_AWFORD_1

#define DFSDM_CHANNEL_SINC3_ORDER   DFSDM_CHAWSCDR_AWFORD

#define DFSDM_CHANNEL_SPI_CLOCK_EXTERNAL   0x00000000U

#define DFSDM_CHANNEL_SPI_CLOCK_INTERNAL   DFSDM_CHCFGR1_SPICKSEL_0

#define DFSDM_CHANNEL_SPI_CLOCK_INTERNAL_DIV2_FALLING   DFSDM_CHCFGR1_SPICKSEL_1

#define DFSDM_CHANNEL_SPI_CLOCK_INTERNAL_DIV2_RISING   DFSDM_CHCFGR1_SPICKSEL

#define DFSDM_CHANNEL_SPI_FALLING   DFSDM_CHCFGR1_SITP_0

#define DFSDM_CHANNEL_SPI_RISING   0x00000000U

#define DFSDM_CHANNEL_STANDARD_MODE   0x00000000U

#define DFSDM_CONTINUOUS_CONV_OFF   0x00000000U

#define DFSDM_CONTINUOUS_CONV_ON   0x00000001U

#define DFSDM_FILTER_AWD_CHANNEL_DATA   DFSDM_FLTCR1_AWFSEL

#define DFSDM_FILTER_AWD_FILTER_DATA   0x00000000U

#define DFSDM_FILTER_ERROR_DMA   0x00000003U

#define DFSDM_FILTER_ERROR_INJECTED_OVERRUN   0x00000002U

#define DFSDM_FILTER_ERROR_NONE   0x00000000U

#define DFSDM_FILTER_ERROR_REGULAR_OVERRUN   0x00000001U

#define DFSDM_FILTER_EXT_TRIG_BOTH_EDGES   DFSDM_FLTCR1_JEXTEN

#define DFSDM_FILTER_EXT_TRIG_EXTI11   (DFSDM_FLTCR1_JEXTSEL_4 | DFSDM_FLTCR1_JEXTSEL_3)

#define DFSDM_FILTER_EXT_TRIG_EXTI15   (DFSDM_FLTCR1_JEXTSEL_4 | DFSDM_FLTCR1_JEXTSEL_3 | DFSDM_FLTCR1_JEXTSEL_0)

#define DFSDM_FILTER_EXT_TRIG_FALLING_EDGE   DFSDM_FLTCR1_JEXTEN_1

#define DFSDM_FILTER_EXT_TRIG_HRTIM1_ADCTRG1   (DFSDM_FLTCR1_JEXTSEL_3 | DFSDM_FLTCR1_JEXTSEL_0)

#define DFSDM_FILTER_EXT_TRIG_HRTIM1_ADCTRG3   (DFSDM_FLTCR1_JEXTSEL_3 | DFSDM_FLTCR1_JEXTSEL_1)

#define DFSDM_FILTER_EXT_TRIG_LPTIM1_OUT   (DFSDM_FLTCR1_JEXTSEL_4 | DFSDM_FLTCR1_JEXTSEL_3 | DFSDM_FLTCR1_JEXTSEL_1)

#define DFSDM_FILTER_EXT_TRIG_LPTIM2_OUT   (DFSDM_FLTCR1_JEXTSEL_4 | DFSDM_FLTCR1_JEXTSEL_3 | DFSDM_FLTCR1_JEXTSEL_1 | DFSDM_FLTCR1_JEXTSEL_0)

#define DFSDM_FILTER_EXT_TRIG_LPTIM3_OUT   (DFSDM_FLTCR1_JEXTSEL_4 | DFSDM_FLTCR1_JEXTSEL_3 | DFSDM_FLTCR1_JEXTSEL_2)

#define DFSDM_FILTER_EXT_TRIG_RISING_EDGE   DFSDM_FLTCR1_JEXTEN_0

#define DFSDM_FILTER_EXT_TRIG_TIM16_OC1   (DFSDM_FLTCR1_JEXTSEL_2 | DFSDM_FLTCR1_JEXTSEL_1)

#define DFSDM_FILTER_EXT_TRIG_TIM1_TRGO   0x00000000U

#define DFSDM_FILTER_EXT_TRIG_TIM1_TRGO2   DFSDM_FLTCR1_JEXTSEL_0

#define DFSDM_FILTER_EXT_TRIG_TIM3_TRGO   DFSDM_FLTCR1_JEXTSEL_2

#define DFSDM_FILTER_EXT_TRIG_TIM4_TRGO   (DFSDM_FLTCR1_JEXTSEL_0 | DFSDM_FLTCR1_JEXTSEL_2)

#define DFSDM_FILTER_EXT_TRIG_TIM6_TRGO   (DFSDM_FLTCR1_JEXTSEL_0 | DFSDM_FLTCR1_JEXTSEL_2 | DFSDM_FLTCR1_JEXTSEL_1)

#define DFSDM_FILTER_EXT_TRIG_TIM7_TRGO   DFSDM_FLTCR1_JEXTSEL_3

#define DFSDM_FILTER_EXT_TRIG_TIM8_TRGO   DFSDM_FLTCR1_JEXTSEL_1

#define DFSDM_FILTER_EXT_TRIG_TIM8_TRGO2   (DFSDM_FLTCR1_JEXTSEL_0 | DFSDM_FLTCR1_JEXTSEL_1)

#define DFSDM_FILTER_EXT_TRIGGER   0x00000002U

#define DFSDM_FILTER_FASTSINC_ORDER   0x00000000U

#define DFSDM_FILTER_SINC1_ORDER   DFSDM_FLTFCR_FORD_0

#define DFSDM_FILTER_SINC2_ORDER   DFSDM_FLTFCR_FORD_1

#define DFSDM_FILTER_SINC3_ORDER   (DFSDM_FLTFCR_FORD_0 | DFSDM_FLTFCR_FORD_1)

#define DFSDM_FILTER_SINC4_ORDER   DFSDM_FLTFCR_FORD_2

#define DFSDM_FILTER_SINC5_ORDER   (DFSDM_FLTFCR_FORD_0 | DFSDM_FLTFCR_FORD_2)

#define DFSDM_FILTER_SW_TRIGGER   0x00000000U

#define DFSDM_FILTER_SYNC_TRIGGER   0x00000001U

#define DFSDM_NO_BREAK_SIGNAL   0x00000000U

#define IS_DFSDM_BREAK_SIGNALS(VALUE)   ((VALUE) <= 0xFU)

#define IS_DFSDM_CHANNEL_DATA_PACKING(MODE)

#define IS_DFSDM_CHANNEL_FILTER_ORDER(ORDER)

#define IS_DFSDM_CHANNEL_FILTER_OVS_RATIO(RATIO)   ((1U <= (RATIO)) && ((RATIO) <= 32U))

#define IS_DFSDM_CHANNEL_INPUT(INPUT)

#define IS_DFSDM_CHANNEL_INPUT_PINS(PINS)

#define IS_DFSDM_CHANNEL_OFFSET(VALUE)   ((-8388608 <= (VALUE)) && ((VALUE) <= 8388607))

#define IS_DFSDM_CHANNEL_OUTPUT_CLOCK(CLOCK)

#define IS_DFSDM_CHANNEL_OUTPUT_CLOCK_DIVIDER(DIVIDER)   ((2U <= (DIVIDER)) && ((DIVIDER) <= 256U))

#define IS_DFSDM_CHANNEL_RIGHT_BIT_SHIFT(VALUE)   ((VALUE) <= 0x1FU)

#define IS_DFSDM_CHANNEL_SCD_THRESHOLD(VALUE)   ((VALUE) <= 0xFFU)

#define IS_DFSDM_CHANNEL_SERIAL_INTERFACE_TYPE(MODE)

#define IS_DFSDM_CHANNEL_SPI_CLOCK(TYPE)

#define IS_DFSDM_CONTINUOUS_MODE(MODE)

#define IS_DFSDM_FILTER_AWD_DATA_SOURCE(DATA)

#define IS_DFSDM_FILTER_AWD_THRESHOLD(VALUE)   ((-8388608 <= (VALUE)) && ((VALUE) <= 8388607))

#define IS_DFSDM_FILTER_EXT_TRIG(TRIG)

#define IS_DFSDM_FILTER_EXT_TRIG_EDGE(EDGE)

#define IS_DFSDM_FILTER_INJ_TRIGGER(TRIG)

#define IS_DFSDM_FILTER_INTEGRATOR_OVS_RATIO(RATIO)   ((1U <= (RATIO)) && ((RATIO) <= 256U))

#define IS_DFSDM_FILTER_OVS_RATIO(RATIO)   ((1U <= (RATIO)) && ((RATIO) <= 1024U))

#define IS_DFSDM_FILTER_REG_TRIGGER(TRIG)

#define IS_DFSDM_FILTER_SINC_ORDER(ORDER)

#define IS_DFSDM_INJECTED_CHANNEL(CHANNEL)   (((CHANNEL) != 0U) && ((CHANNEL) <= 0x000F00FFU))

#define IS_DFSDM_REGULAR_CHANNEL(CHANNEL)


Enumerations

enum  HAL_DFSDM_Channel_StateTypeDef { HAL_DFSDM_CHANNEL_STATE_RESET = 0x00U, HAL_DFSDM_CHANNEL_STATE_READY = 0x01U, HAL_DFSDM_CHANNEL_STATE_ERROR = 0xFFU }
 HAL DFSDM Channel states definition. More...

enum  HAL_DFSDM_Filter_StateTypeDef {
  HAL_DFSDM_FILTER_STATE_RESET = 0x00U, HAL_DFSDM_FILTER_STATE_READY = 0x01U, HAL_DFSDM_FILTER_STATE_REG = 0x02U, HAL_DFSDM_FILTER_STATE_INJ = 0x03U,
  HAL_DFSDM_FILTER_STATE_REG_INJ = 0x04U, HAL_DFSDM_FILTER_STATE_ERROR = 0xFFU
}
 HAL DFSDM Filter states definition. More...


Functions

void HAL_DFSDM_ChannelCkabCallback (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)

HAL_StatusTypeDef HAL_DFSDM_ChannelCkabStart (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)

HAL_StatusTypeDef HAL_DFSDM_ChannelCkabStart_IT (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)

HAL_StatusTypeDef HAL_DFSDM_ChannelCkabStop (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)

HAL_StatusTypeDef HAL_DFSDM_ChannelCkabStop_IT (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)

HAL_StatusTypeDef HAL_DFSDM_ChannelDeInit (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)

int16_t HAL_DFSDM_ChannelGetAwdValue (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)

HAL_DFSDM_Channel_StateTypeDef HAL_DFSDM_ChannelGetState (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)

HAL_StatusTypeDef HAL_DFSDM_ChannelInit (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)

HAL_StatusTypeDef HAL_DFSDM_ChannelModifyOffset (DFSDM_Channel_HandleTypeDef *hdfsdm_channel, int32_t Offset)

void HAL_DFSDM_ChannelMspDeInit (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)
 DFSDM_Channel MSP De-Initialization This function freeze the hardware resources used in this example. More...

void HAL_DFSDM_ChannelMspInit (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)
 DFSDM_Channel MSP Initialization This function configures the hardware resources used in this example. More...

HAL_StatusTypeDef HAL_DFSDM_ChannelPollForCkab (DFSDM_Channel_HandleTypeDef *hdfsdm_channel, uint32_t Timeout)

HAL_StatusTypeDef HAL_DFSDM_ChannelPollForScd (DFSDM_Channel_HandleTypeDef *hdfsdm_channel, uint32_t Timeout)

void HAL_DFSDM_ChannelScdCallback (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)

HAL_StatusTypeDef HAL_DFSDM_ChannelScdStart (DFSDM_Channel_HandleTypeDef *hdfsdm_channel, uint32_t Threshold, uint32_t BreakSignal)

HAL_StatusTypeDef HAL_DFSDM_ChannelScdStart_IT (DFSDM_Channel_HandleTypeDef *hdfsdm_channel, uint32_t Threshold, uint32_t BreakSignal)

HAL_StatusTypeDef HAL_DFSDM_ChannelScdStop (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)

HAL_StatusTypeDef HAL_DFSDM_ChannelScdStop_IT (DFSDM_Channel_HandleTypeDef *hdfsdm_channel)

void HAL_DFSDM_FilterAwdCallback (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, uint32_t Channel, uint32_t Threshold)

HAL_StatusTypeDef HAL_DFSDM_FilterAwdStart_IT (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, DFSDM_Filter_AwdParamTypeDef *awdParam)

HAL_StatusTypeDef HAL_DFSDM_FilterAwdStop_IT (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

HAL_StatusTypeDef HAL_DFSDM_FilterConfigInjChannel (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, uint32_t Channel)

HAL_StatusTypeDef HAL_DFSDM_FilterConfigRegChannel (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, uint32_t Channel, uint32_t ContinuousMode)

HAL_StatusTypeDef HAL_DFSDM_FilterDeInit (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

void HAL_DFSDM_FilterErrorCallback (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

HAL_StatusTypeDef HAL_DFSDM_FilterExdStart (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, uint32_t Channel)

HAL_StatusTypeDef HAL_DFSDM_FilterExdStop (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

uint32_t HAL_DFSDM_FilterGetConvTimeValue (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

uint32_t HAL_DFSDM_FilterGetError (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

int32_t HAL_DFSDM_FilterGetExdMaxValue (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, uint32_t *Channel)

int32_t HAL_DFSDM_FilterGetExdMinValue (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, uint32_t *Channel)

int32_t HAL_DFSDM_FilterGetInjectedValue (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, uint32_t *Channel)

int32_t HAL_DFSDM_FilterGetRegularValue (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, uint32_t *Channel)

HAL_DFSDM_Filter_StateTypeDef HAL_DFSDM_FilterGetState (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

HAL_StatusTypeDef HAL_DFSDM_FilterInit (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

void HAL_DFSDM_FilterInjConvCpltCallback (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

void HAL_DFSDM_FilterInjConvHalfCpltCallback (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

HAL_StatusTypeDef HAL_DFSDM_FilterInjectedMsbStart_DMA (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, int16_t *pData, uint32_t Length)

HAL_StatusTypeDef HAL_DFSDM_FilterInjectedStart (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

HAL_StatusTypeDef HAL_DFSDM_FilterInjectedStart_DMA (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, int32_t *pData, uint32_t Length)

HAL_StatusTypeDef HAL_DFSDM_FilterInjectedStart_IT (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

HAL_StatusTypeDef HAL_DFSDM_FilterInjectedStop (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

HAL_StatusTypeDef HAL_DFSDM_FilterInjectedStop_DMA (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

HAL_StatusTypeDef HAL_DFSDM_FilterInjectedStop_IT (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

void HAL_DFSDM_FilterMspDeInit (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)
 DFSDM_Filter MSP De-Initialization This function freeze the hardware resources used in this example. More...

void HAL_DFSDM_FilterMspInit (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)
 DFSDM_Filter MSP Initialization This function configures the hardware resources used in this example. More...

HAL_StatusTypeDef HAL_DFSDM_FilterPollForInjConversion (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, uint32_t Timeout)

HAL_StatusTypeDef HAL_DFSDM_FilterPollForRegConversion (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, uint32_t Timeout)

void HAL_DFSDM_FilterRegConvCpltCallback (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)
 Regular conversion complete callback. More...

void HAL_DFSDM_FilterRegConvHalfCpltCallback (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)
 Half regular conversion complete callback. More...

HAL_StatusTypeDef HAL_DFSDM_FilterRegularMsbStart_DMA (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, int16_t *pData, uint32_t Length)

HAL_StatusTypeDef HAL_DFSDM_FilterRegularStart (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

HAL_StatusTypeDef HAL_DFSDM_FilterRegularStart_DMA (DFSDM_Filter_HandleTypeDef *hdfsdm_filter, int32_t *pData, uint32_t Length)

HAL_StatusTypeDef HAL_DFSDM_FilterRegularStart_IT (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

HAL_StatusTypeDef HAL_DFSDM_FilterRegularStop (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

HAL_StatusTypeDef HAL_DFSDM_FilterRegularStop_DMA (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

HAL_StatusTypeDef HAL_DFSDM_FilterRegularStop_IT (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)

void HAL_DFSDM_IRQHandler (DFSDM_Filter_HandleTypeDef *hdfsdm_filter)


Detailed Description

Header file of DFSDM HAL module.

Author
MCD Application Team
Attention

© Copyright (c) 2017 STMicroelectronics. All rights reserved.

This software component is licensed by ST under BSD 3-Clause license, the "License"; You may not use this file except in compliance with the License. You may obtain a copy of the License at: opensource.org/licenses/BSD-3-Clause

Definition in file stm32h7xx_hal_dfsdm.h.


picovoice_driver
Author(s):
autogenerated on Fri Apr 1 2022 02:15:03
