UART HAL module driver. This file provides firmware functions to manage the following functionalities of the Universal Asynchronous Receiver Transmitter Peripheral (UART). More...
#include "stm32f7xx_hal.h"

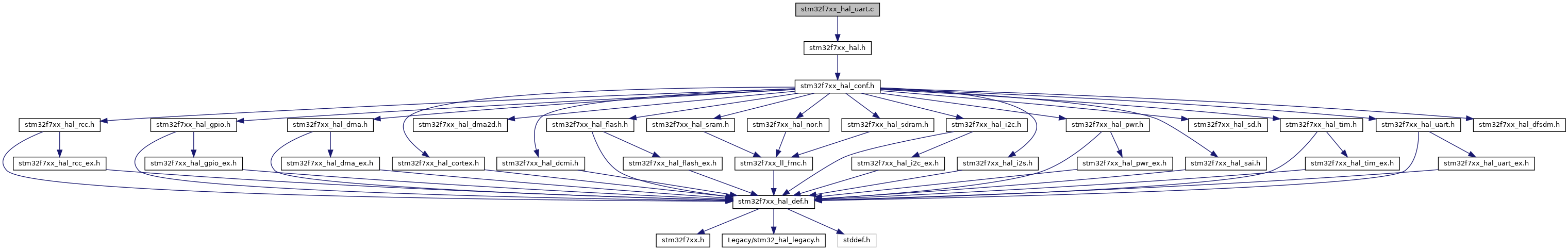

Include dependency graph for stm32f7xx_hal_uart.c:
Go to the source code of this file.
Detailed Description
UART HAL module driver. This file provides firmware functions to manage the following functionalities of the Universal Asynchronous Receiver Transmitter Peripheral (UART).
===============================================================================
##### How to use this driver #####
===============================================================================
[..]
The UART HAL driver can be used as follows:
(#) Declare a UART_HandleTypeDef handle structure (eg. UART_HandleTypeDef huart).
(#) Initialize the UART low level resources by implementing the HAL_UART_MspInit() API:
(++) Enable the USARTx interface clock.
(++) UART pins configuration:
(+++) Enable the clock for the UART GPIOs.
(+++) Configure these UART pins as alternate function pull-up.
(++) NVIC configuration if you need to use interrupt process (HAL_UART_Transmit_IT()
and HAL_UART_Receive_IT() APIs):
(+++) Configure the USARTx interrupt priority.
(+++) Enable the NVIC USART IRQ handle.
(++) UART interrupts handling:
-@@- The specific UART interrupts (Transmission complete interrupt,
RXNE interrupt, RX/TX FIFOs related interrupts and Error Interrupts)
are managed using the macros __HAL_UART_ENABLE_IT() and __HAL_UART_DISABLE_IT()
inside the transmit and receive processes.
(++) DMA Configuration if you need to use DMA process (HAL_UART_Transmit_DMA()
and HAL_UART_Receive_DMA() APIs):
(+++) Declare a DMA handle structure for the Tx/Rx channel.
(+++) Enable the DMAx interface clock.
(+++) Configure the declared DMA handle structure with the required Tx/Rx parameters.
(+++) Configure the DMA Tx/Rx channel.
(+++) Associate the initialized DMA handle to the UART DMA Tx/Rx handle.
(+++) Configure the priority and enable the NVIC for the transfer complete interrupt on the DMA Tx/Rx channel.
(#) Program the Baud Rate, Word Length, Stop Bit, Parity, Hardware
flow control and Mode (Receiver/Transmitter) in the huart handle Init structure.
(#) If required, program UART advanced features (TX/RX pins swap, auto Baud rate detection,...)
in the huart handle AdvancedInit structure.
(#) For the UART asynchronous mode, initialize the UART registers by calling
the HAL_UART_Init() API.
(#) For the UART Half duplex mode, initialize the UART registers by calling
the HAL_HalfDuplex_Init() API.
(#) For the UART LIN (Local Interconnection Network) mode, initialize the UART registers
by calling the HAL_LIN_Init() API.
(#) For the UART Multiprocessor mode, initialize the UART registers
by calling the HAL_MultiProcessor_Init() API.
(#) For the UART RS485 Driver Enabled mode, initialize the UART registers
by calling the HAL_RS485Ex_Init() API.
[..]
(@) These API's (HAL_UART_Init(), HAL_HalfDuplex_Init(), HAL_LIN_Init(), HAL_MultiProcessor_Init(),
also configure the low level Hardware GPIO, CLOCK, CORTEX...etc) by
calling the customized HAL_UART_MspInit() API.
##### Callback registration #####
==================================
[..]
The compilation define USE_HAL_UART_REGISTER_CALLBACKS when set to 1
allows the user to configure dynamically the driver callbacks.
[..]
Use Function @ref HAL_UART_RegisterCallback() to register a user callback.
Function @ref HAL_UART_RegisterCallback() allows to register following callbacks:
(+) TxHalfCpltCallback : Tx Half Complete Callback.
(+) TxCpltCallback : Tx Complete Callback.
(+) RxHalfCpltCallback : Rx Half Complete Callback.
(+) RxCpltCallback : Rx Complete Callback.
(+) ErrorCallback : Error Callback.
(+) AbortCpltCallback : Abort Complete Callback.
(+) AbortTransmitCpltCallback : Abort Transmit Complete Callback.
(+) AbortReceiveCpltCallback : Abort Receive Complete Callback.
(+) WakeupCallback : Wakeup Callback.
(+) RxFifoFullCallback : Rx Fifo Full Callback.
(+) TxFifoEmptyCallback : Tx Fifo Empty Callback.
(+) MspInitCallback : UART MspInit.
(+) MspDeInitCallback : UART MspDeInit.
This function takes as parameters the HAL peripheral handle, the Callback ID
and a pointer to the user callback function.
[..]
Use function @ref HAL_UART_UnRegisterCallback() to reset a callback to the default
weak (surcharged) function.
@ref HAL_UART_UnRegisterCallback() takes as parameters the HAL peripheral handle,
and the Callback ID.
This function allows to reset following callbacks:
(+) TxHalfCpltCallback : Tx Half Complete Callback.
(+) TxCpltCallback : Tx Complete Callback.
(+) RxHalfCpltCallback : Rx Half Complete Callback.
(+) RxCpltCallback : Rx Complete Callback.
(+) ErrorCallback : Error Callback.
(+) AbortCpltCallback : Abort Complete Callback.
(+) AbortTransmitCpltCallback : Abort Transmit Complete Callback.
(+) AbortReceiveCpltCallback : Abort Receive Complete Callback.
(+) WakeupCallback : Wakeup Callback.
(+) RxFifoFullCallback : Rx Fifo Full Callback.
(+) TxFifoEmptyCallback : Tx Fifo Empty Callback.
(+) MspInitCallback : UART MspInit.
(+) MspDeInitCallback : UART MspDeInit.
[..]
By default, after the @ref HAL_UART_Init() and when the state is HAL_UART_STATE_RESET
all callbacks are set to the corresponding weak (surcharged) functions:
examples @ref HAL_UART_TxCpltCallback(), @ref HAL_UART_RxHalfCpltCallback().
Exception done for MspInit and MspDeInit functions that are respectively
reset to the legacy weak (surcharged) functions in the @ref HAL_UART_Init()
and @ref HAL_UART_DeInit() only when these callbacks are null (not registered beforehand).
If not, MspInit or MspDeInit are not null, the @ref HAL_UART_Init() and @ref HAL_UART_DeInit()
keep and use the user MspInit/MspDeInit callbacks (registered beforehand).
[..]
Callbacks can be registered/unregistered in HAL_UART_STATE_READY state only.
Exception done MspInit/MspDeInit that can be registered/unregistered
in HAL_UART_STATE_READY or HAL_UART_STATE_RESET state, thus registered (user)
MspInit/DeInit callbacks can be used during the Init/DeInit.
In that case first register the MspInit/MspDeInit user callbacks
using @ref HAL_UART_RegisterCallback() before calling @ref HAL_UART_DeInit()
or @ref HAL_UART_Init() function.
[..]
When The compilation define USE_HAL_UART_REGISTER_CALLBACKS is set to 0 or
not defined, the callback registration feature is not available
and weak (surcharged) callbacks are used.- Attention
© Copyright (c) 2017 STMicroelectronics. All rights reserved.
This software component is licensed by ST under BSD 3-Clause license, the "License"; You may not use this file except in compliance with the License. You may obtain a copy of the License at: opensource.org/licenses/BSD-3-Clause
Definition in file stm32f7xx_hal_uart.c.
