Header file of DMA HAL extension module. More...
#include "stm32f7xx_hal_def.h"

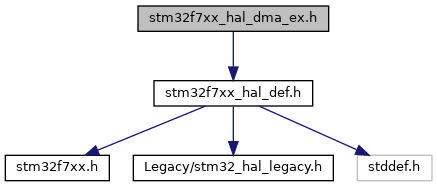

Include dependency graph for stm32f7xx_hal_dma_ex.h:

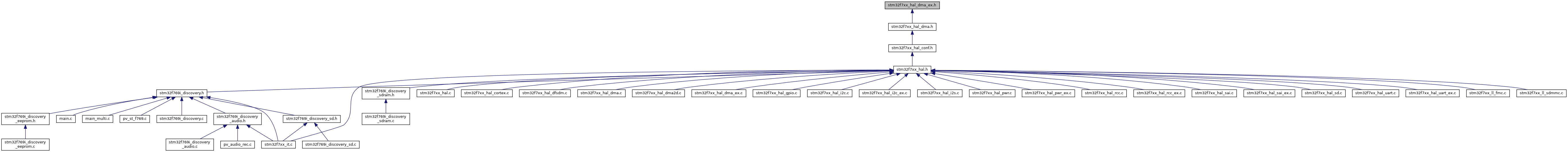

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | DMA_CHANNEL_0 0x00000000U |
| #define | DMA_CHANNEL_1 0x02000000U |
| #define | DMA_CHANNEL_2 0x04000000U |
| #define | DMA_CHANNEL_3 0x06000000U |
| #define | DMA_CHANNEL_4 0x08000000U |
| #define | DMA_CHANNEL_5 0x0A000000U |
| #define | DMA_CHANNEL_6 0x0C000000U |
| #define | DMA_CHANNEL_7 0x0E000000U |
| #define | IS_DMA_CHANNEL(CHANNEL) |
Enumerations | |
| enum | HAL_DMA_MemoryTypeDef { MEMORY0 = 0x00U, MEMORY1 = 0x01U, MEMORY0 = 0x00U, MEMORY1 = 0x01U, MEMORY0 = 0x00U, MEMORY1 = 0x01U, MEMORY0 = 0x00U, MEMORY1 = 0x01U, MEMORY0 = 0x00U, MEMORY1 = 0x01U, MEMORY0 = 0x00U, MEMORY1 = 0x01U } |
| HAL DMA Memory definition More... | |
Functions | |
| HAL_StatusTypeDef | HAL_DMAEx_ChangeMemory (DMA_HandleTypeDef *hdma, uint32_t Address, HAL_DMA_MemoryTypeDef memory) |
| HAL_StatusTypeDef | HAL_DMAEx_MultiBufferStart (DMA_HandleTypeDef *hdma, uint32_t SrcAddress, uint32_t DstAddress, uint32_t SecondMemAddress, uint32_t DataLength) |
| HAL_StatusTypeDef | HAL_DMAEx_MultiBufferStart_IT (DMA_HandleTypeDef *hdma, uint32_t SrcAddress, uint32_t DstAddress, uint32_t SecondMemAddress, uint32_t DataLength) |
Detailed Description
Header file of DMA HAL extension module.
- Attention
© Copyright (c) 2017 STMicroelectronics. All rights reserved.
This software component is licensed by ST under BSD 3-Clause license, the "License"; You may not use this file except in compliance with the License. You may obtain a copy of the License at: opensource.org/licenses/BSD-3-Clause
Definition in file stm32f7xx_hal_dma_ex.h.
